SKU: 450-28016
  • Two high-performance PCI Express 10/100/1000 Mbps connections
  • Multi-Gigabit scalability and increased uptime
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Form Factor
Plug-in card
Interface (Bus) Type
PCI Express x4
PCI Specification Revision
PCIe 1.0a
Depth
5.1 in
Height
4.7 in
Networking
Connectivity Technology
Wired
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 Gbps
Remote Management Protocol
SNMP, DMI 2.0
Status Indicators
Port transmission speed, link OK
Features
Full duplex capability, ACPI support, auto-negotiation, wake on LAN (WOL), Intel I/O Acceleration Technology (I/OAT)
Processor / Memory
Processor
1 x 82571GB - Intel
Expansion / Connectivity
Interfaces
2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Compatible Slots
1 x PCI Express x4
Miscellaneous
Certified for Windows Vista
Certified for Windows Vista software and devices have undergone compatibility tests for ease-of-use, better performance and enhanced security.
Compliant Standards
FCC Class B certified, CE, UL, VCCI, C-Tick, BSMI, MIC
Software / System Requirements
Software Included
Intel PROSet
OS Required
SCO OpenServer 5, Microsoft Windows 2000, Novell NetWare 5.x, SunSoft Solaris x86 8, Novell NetWare 6.x, Caldera OpenUnix 8, Linux 2.4 or later, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Datacenter Edition, FreeBSD 4.x
Manufacturer Warranty
Service & Support
Limited lifetime warranty
Service & Support Details
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
131 °F

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: Limited Lifetime Warranty
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

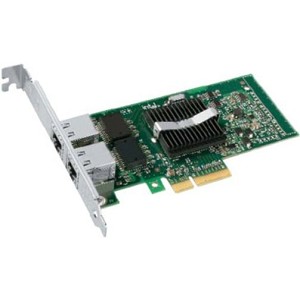

  • 1 x EXPI9402PT PRO/1000 PT Dual Port Server PCI Express Adapter
