SKU: 800-28046A
  • Integrated Graphics - DP / VGA
  • Max 128GB / 4 Dimm DDR4 2666 ECC UDIMM
  • 8x SATA 6Gb/s / RAID 0, 1, 5, 10
  • Up to 4x USB3.1, 2x USB 3.0
  • 2x PCIE x8, 1x PCIe x4
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Chipset
Intel C246
Number of Memory Slots
288-pin DDR4 2666/2400 /2133 ECC/ non-ECC UDIMM
Type of Memory Supported
4
Maximum RAM
128GB
Back Panel I/O
  • 4 x USB 3.1 Gen2 Type-A ports
  • 2 x DisplayPort
  • 1 x VGA
  • 4 x RJ45 LAN
  • 1 x RJ45 Dedicated IPMI LAN
Number of PCI/PCI Express Slots
  • 2 x PCIe 3.0 x8
  • 1 x PCIe 3.0 x4
Integrated SATA/SAS
  • 6 x SATA 6Gb/s
  • 2 x SATA-DOM
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Video
Integrated ASPEED AST2500
Integrated LAN
Intel I210 Gigabit LAN
IPMI
Realtek RTL8211
USB
  • 4 x USB 3.1 Gen2 Type-A ports
  • 2 x USB 3.1 Gen1 via headers
Serial/Parallel Ports
2 x Serial ports via headers
Form Factor
micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

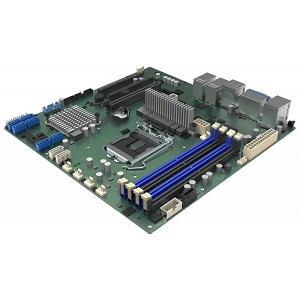

  • Intel Server Board M10JNP2SB
  • I/O shield

Compatible Accessories

Memory

Kingston 8GB DDR4-2666 ECC CL19 SRx8 288-pin UDIMM
  • PC4-21300
  • single-rank x8
  • Thermal Sensor on DIMM
  • ECC UDIMM
  • Micron E-Die
Manufacturer: Kingston
Mfg P/N: KSM26ES8/8MR
Availability: Usually ships with 1-2 business days
