SKU: 800-58031C
  • Integrated Intel Graphics - 2x HDMI / DisplayPort
  • Max 32GB / 2x DDR4 DIMM / Up to 2666
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 7x USB 3.0 (1x USB-C), 2x USB 2.0
  • 1x PCIe X16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 8th Generation Intel Core i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H370 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
2
Type of Memory Supported
288-pin DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Maximum RAM
32GB

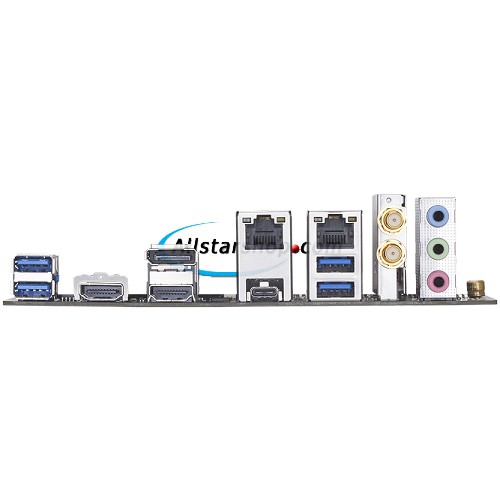

Back Panel I/O
  • 4 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port
  • 2 x HDMI
  • 1 x DisplayPort
  • 2 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
1 x PCIe 3.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC1220 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
  • 2 x Intel Gigabit LAN
  • 802.11a/b/g/n/ac + BLUETOOTH 5
USB
    Up to 9 x USB ports:
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port on Back Panel I/O
    • 4 x USB 3.0 (USB 3.1 Gen1) Type-A ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) Type-A ports via headers
    • 2 x USB 2.0 Type-A ports via headers
Form Factor
Mini ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • H370N WIFI motherboard
  • User's manual
  • Supporting DVD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x Antenna
