SKU: 800-51146F
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 2x DDR5 SO-DIMM / Up to 6400
  • 2x SATA 6Gb/s, 1x M.2
  • 2x USB 3.2 G2 (2x USB-C), 5x USB 3.2 G1, 4x USB 2.0
  • 1x PCIe 5.0 x16
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1851 socket for Intel Core Ultra Processors (Series 2)
Number of Processor (s)
Single (Not Included)
Chipset
Intel Q870 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR5-6400 Non-ECC,Un-buffered ,Clocked SO-DIMM
Maximum RAM
128GB
Back Panel I/O
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 1 x USB 3.2 Gen2 Type-C port
  • 3 x USB 3.2 Gen2 Type-A ports
  • 2 x USB 2.0 ports
  • 2 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
1 x PCIe 5.0 x16
Integrated SATA/SAS
2 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 with M key, type 2280 supports PCIe 5.0 x4 mode
Integrated Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel I219LM Gigabit Ethernet
USB
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port via header
  • 3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 2 x USB 2.0 ports via header
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

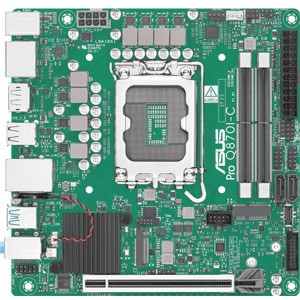

  • Pro Q870I-C-CSM motherboard
  • 1 x ACC Express Activation Key Card
  • 1 x Quick start guide
  • 2 x SATA 6Gb/s cables
  • 1 x Screw package for M.2 SSD
  • 1 x I/O Shield
  • 1 x M.2 Key E screw package
