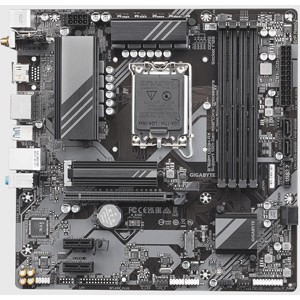

Gigabyte B760M DS3H AX DDR4 B760 LGA1700 mATX Motherboard

Gigabyte B760M DS3H AX DDR4 B760 LGA1700 mATX Motherboard - (Discontinued)

Support: (626) 854-9338

Gigabyte B760M DS3H AX DDR4 B760 LGA1700 mATX Motherboard - (Discontinued)

SKU:	800-58062F

Integrated Intel Graphics - HDMI / 2x DisplayPort
Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
1x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1, 6x USB 2.0
1x PCIe 4.0 x16, 2x PCIe 3.0 x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Kingston Fury Beast 16GB DDR4-3200 CL16 1Rx8 288-pin DIMM

: Kingston Fury Beast 32GB DDR4-3200 CL16 DRx8 288-pin DIMM

: WD Black SN770 PCIe 4.0 NVMe M.2 2280 SSD - 500GB

Specifications

CPU Support

LGA1700 socket for 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5333(O.C.) / 5066(O.C.) / 5000(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4000(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

1 x PS/2 Keyboard/Mouse
1 x USB 3.2 Gen2 Type-C port
3 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
2 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
2 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2280 support PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek 2.5Gb Ethernet

Integrated Wifi

Wi-Fi 6E & Bluetooth

USB

1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

PS/2 Ports

1 x PS/2 Keyboard/Mouse

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
