SKU: 800-58068F
  • Integrated Intel Graphics - HDMI / 2x DisplayPort
  • Max 128GB / 4x DDR5 DIMM / Up to 7400(O.C.)
  • 4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
  • 2x USB 3.2 G2 (1x USB-C), 4x USB 3.2 G1 (1x USB-C), 9x USB 2.0
  • 1x PCIe 4.0 x16, 2 x PCIe 3.0 x16
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B760 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB USB 3.2 Gen1 Type-C port
  • 1 x USB 3.2 Gen1 Type-A port
  • 5 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna connectors
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 3.0 x16 (max x1)
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
3 x M.2 socket, with M key, type 2280 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek 2.5Gb Ethernet
Integrated Wifi
AMD Wi-Fi 6E & Bluetooth v5.2
USB
  • 1 x USB 3.2 Gen2 Type-C port via header
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB USB 3.2 Gen1 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-A port on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 5 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

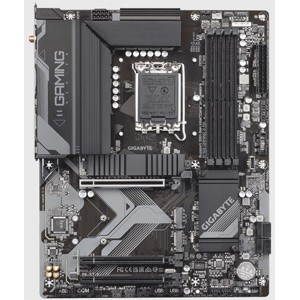

  • Gigabyte B760 GAMING X AX motherboard
  • User Manual
  • 2 x SATA cables
  • Antenna
  • M.2 screws

Compatible Accessories

CPU

Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)
  • 14x Cores / 20x Threads / Turbo Boost: 4.8 GHz
  • P-core: 6 / Base: 2.5 GHz / Turbo: 4.8 GHz
  • E-core: 8 / Base: 1.8 GHz / Turbo: 3.5 GHz
  • Base: 65W / Max Turbo 154W
  • Intel UHD Graphics 770 / Heatsink/Fan Included
Manufacturer: Intel
Mfg P/N: BX8071513500
Availability: Usually ships with 1-2 business days
Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)
  • 16x Cores / 24x Threads / Turbo Boost: 5.2 GHz
  • P-core: 8 / Base: 2.1 GHz / Turbo: 5.1 GHz
  • E-core: 8 / Base: 1.5 GHz / Turbo: 4.1 GHz
  • Base: 65W / Max Turbo 219W
  • Intel UHD Graphics 770 / Heatsink/Fan Included
Manufacturer: Intel
Mfg P/N: BX8071513700
Availability: Usually ships with 1-2 business days

Memory

Kingston Fury Beast 32GB Kit (2x 16GB) DDR5-6000 CL40 288-pin DIMM
  • PC5-48000
  • Single-Rank x8
  • Default PnP: DDR5-4800 CL40-39-39 @ 1.1V
  • XMP 1: DDR5-6000 CL40-40-40 @ 1.35V
  • XMP 2: DDR5-5600 CL40-40-40 @1.25V
Manufacturer: Kingston
Mfg P/N: KF560C40BBK2-32
Availability: Usually ships same day
Kingston Fury Renegade Silver 32GB Kit (2 x 16GB) DDR5-6800 CL36 288-pin DIMM
  • Single-Rank x8
  • Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
  • XMP Profile #1: DDR5-6800 CL36-42-42 @1.4V
  • XMP Profile #2: DDR5-6400 CL32-39-39 @1.4V
Manufacturer: Kingston
Mfg P/N: KF568C36RSK2-32
Availability: Temporarily out of stock
Kingston Fury Renegade Silver 32GB Kit (2 x 16GB) DDR5-7200 CL38 288-pin DIMM
  • PC5-57600
  • Single-Rank x8
  • Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
  • XMP Profile #1: DDR5-7200 CL38-44-44 @1.45V
  • XMP Profile #2: DDR5-6800 CL36-42-42 @1.4V
Manufacturer: Kingston
Mfg P/N: KF572C38RSK2-32
Availability: Usually ships with 1-2 business days

SSD

WD Black SN770 PCIe 4.0 NVMe M.2 2280 SSD - 500GB
  • Sequential Read (up to): 5000 MB/s / Write (up to): 4000 MB/s
  • Random 4KB Read (up to): 460000 IOPS / Write (up to): 800000 IOPS
  • Endurance Rating: 300 TBW
  • MTBF: 1.75M hours
  • Form Factor: M.2 22 x 80mm
Manufacturer: Western Digital
Mfg P/N: WDS500G3X0E
Availability: Usually ships with 1-2 business days
WD_BLACK SN850X 1TB PCIe Gen4 NVMe x4 M.2 2280 SSD
  • Sequential Read (up to): 7,300MB/s / Write (up to): 6,300MB/s
  • Random Read (up to): 800K IOPS / Write (up to): 1,100K IOPS
  • Endurance Rating: 600 TBW
  • Form Factor: M.2 22 x 80mm
Manufacturer: Western Digital
Mfg P/N: WDS100T2X0E
Availability: Usually ships with 1-2 business days

Software

Microsoft Windows 11 Home 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: KW9-00633
Availability: Usually ships with 1-2 business days
Microsoft Windows 11 Pro 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: FQC-10529
Availability: Usually ships same day
