SKU: 800-58073F
  • Integrated Radeon Graphics - HDMI / DisplayPort
  • Max 192GB / 4x DDR5 DIMM / Up to 6400 (O.C.)
  • 4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • 2x USB 3.2 G2 (1x USB-C), 7x USB 3.2 G1 (1x USB-C), 6x USB 2.0
  • 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
AMD Ryzen 7000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD B650
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800, ECC and Non-ECC, Un-buffered Memory
Maximum RAM
192GB

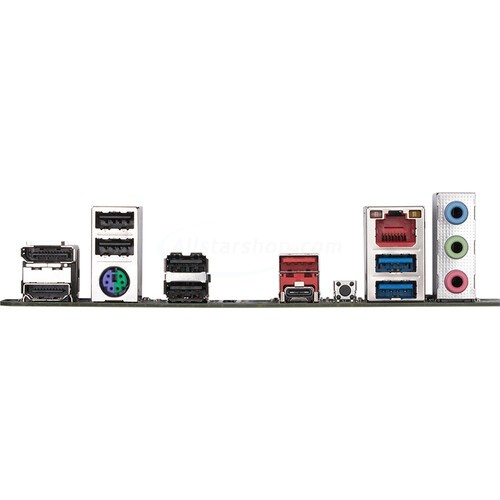

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse port
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 4 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2580 supports PCIe 4.0 x4/x2 mode
  • 1 x M.2 socket, with M key, type 25110/2280 supports PCIe 4.0 x4/x2 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 3.2 Gen1 Type-A ports via headers
  • 4 x USB 2.0 on Back Panel I/O
  • 2 x USB 2.0 via header
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
