features
Quad CPU/CORE Support
Our dual dedicated +12V ( +12V1 & +12V2) with 17A on each rails allows you to run a quad CPU and quad CPU Core server systems..

Quad GPU Support
Five individual +12V Rails allows the power to support up to 4 PCI E graphic cards.

Five +12V Rails
Independent 12V rails supply to MB/CPU and drives in order to provide stable and clean current to noise-sensitive devices, such as: CPU, add-on cards.Meet UL 240VA safety requirements. It also separate the motherboard rails and video card rails to ensure maximum power to your PCI Express video card.

High efficiency (85%)
High efficiency is achieve by using using high quality components and the skills of our designer to maximizes your power supply output and minimize wasted power. Efficiency is the measure of how much of the 100% power going in to the PSU is being used up and the unused power dissipate into heat through the heatsink. Lower efficiency means that more power is being wasted and also the PSU will generate more heat.

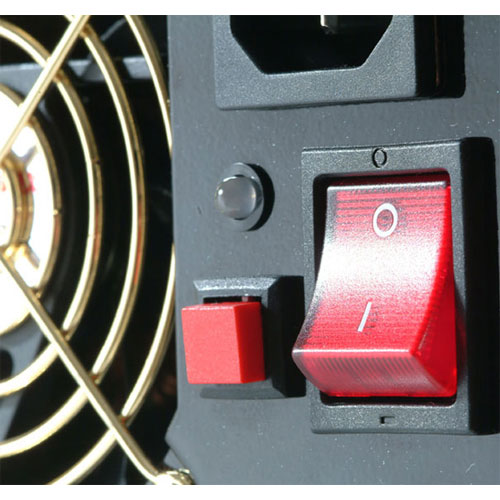

Power Guard

The PowerGuard uses LED light and internal buzzer to indicate current power supply status. Under abnormal situation, the PowerGuard will turn off the power supply to protect your system.

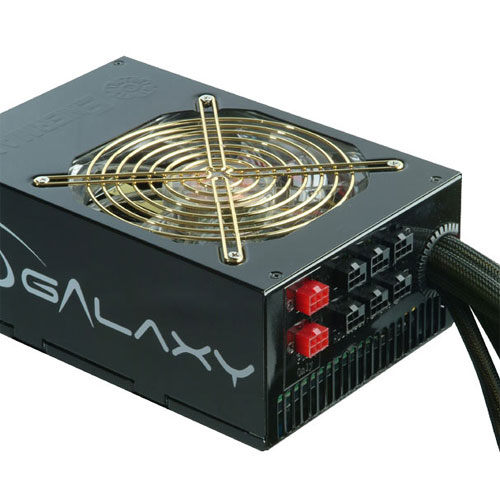

Output Connectors

20+4-pin Main Power x 1

4-pin Peripheral x 10	4-pin Floppy x 2	SATA x 12	FAN Monitor x 1	6-pin PCI-Express x 2
8-pin EPS12V x 1	4pin+4 EPS12V x 1
