SKU: 992-11413C
  • 85% efficiency
  • 1 x +12V Rail
  • 2 x 6-pin PCI-e, 2 x 8-pin PCI-e connector
  • MTBF: > 100,000 Hours
  • Modular Cables
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
85% Typically
Fans
1 x 135mm ultra silent fan
Power Factor Correction (PFC)
Active
MTBF
>100,000hrs
Protection
  • Over Loading
  • Short Circuit
  • Over Voltage
  • Over Current
  • Over Temperature
  • Version Support
    ATX 12V 2.3 / SSI EPS 12V V2.91
    Current
  • 12A@115Vac
  • 6A@230Vac
  • Input Voltage Range
    90V AC to 264V AC
    Frequency
    47Hz - 63 Hz
    Output Power
    700W
    Output Voltage
  • 3.3V @ 20A
  • 5V @ 20A
  • 12V @ 50A
  • -12V @ 0.5A
  • Input Voltage
  • 110V AC
  • 220V AC
  • Additional information
    +5Vsb @2.5A
    Connectors
  • 1 x 4-pin SP4 Floppy Drive
  • 24-pin ATX12V Motherboard
  • 1 x 4+4pin EPS12V Motherboard
  • 2 x 8-pin PCI-E
  • 0 x SATA
  • 5 x 4-pin LP4 Peripheral Device
  • Green Compliance
    Yes
    Green Compliance Certificate/Authority
    80 Plus
    Dimensions
    3.39" Height x 5.91" Width x 5.91" Depth

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 5 years
    • Warranty Provider: Cooler Master
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Cooler Master at (909) 673-9880
    • Technical Support: Cooler Master (909) 673-9880

    Package Contents

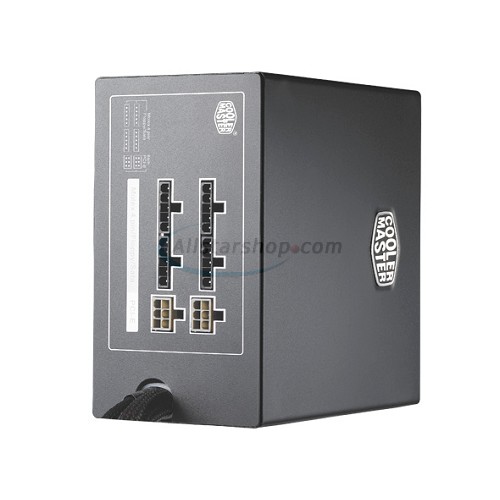

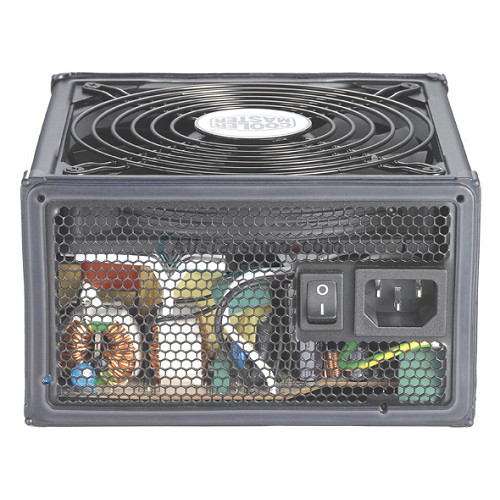

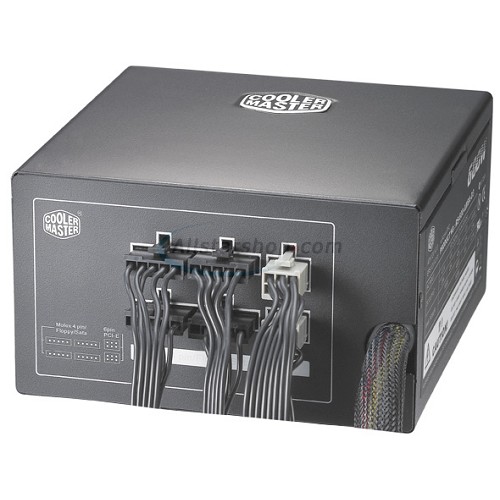

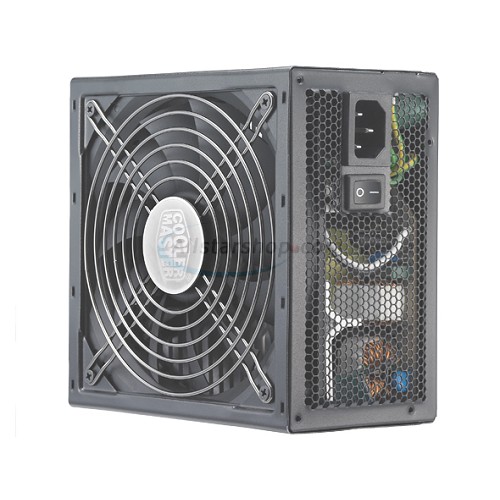

    • Cooler Master Silent Pro M 700W ATX12V & EPS12V PSU (Modular)
