SKU: 992-11437 Mfg P/N: MPX-5501-AMAAB-US
  • Efficiency up to 85%
  • 1 x +12V Rail
  • 2 x 6+2-pin PCI-E
  • MTBF: 100,000 hours
  • Dimensions: 140 x 150 x 86 mm
Our Price: $55.50
List Price: $69.99 You save: $14.49
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

Efficiency
85%
Fans
1 x 120mm
MTBF
> 100,000 hours
Protection
OCP / OVP / UVP / OPP / OTP / SCP
Current
8-4 A
Frequency
50-60 Hz
Output Power
550W
Output Voltage
Output VoltageOutput Current
+3.3V20A
+5V20A
+12V145.8A
-12V0.3A
+5Vsb3A
Input Voltage
100-240 Vac
Connectors
  • 1 x 20+4-pin Main Power
  • 1 x 4+4-pin ATX 12V
  • 2 x 6+2-pin PCI-E
  • 6 x SATA
  • 2 x Molex
  • 1 x Floppy
Dimensions
140 x 150 x 86 mm
Certifications & Standards
80 PLUS Bronze

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 2 years
  • Warranty Provider: Cooler Master
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Cooler Master at (909) 673-9880
  • Technical Support: Cooler Master (909) 673-9880

Package Contents

  • Power Supply

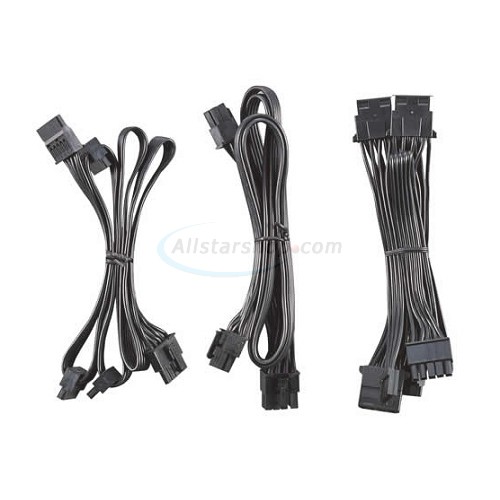

  • Modular Cables
  • Power Cord
