Device Type

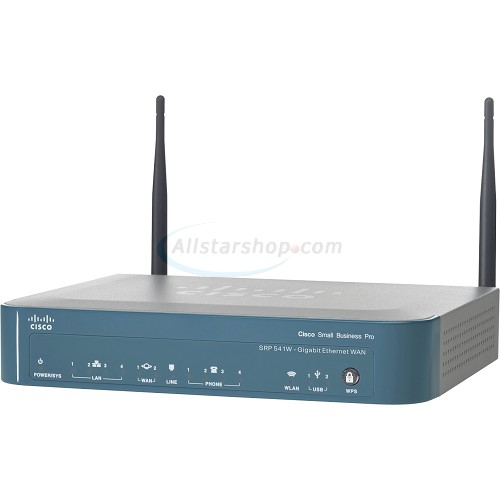

Wireless router - 4-port switch (integrated)

Enclosure Type

Desktop

Connectivity Technology

Wireless, wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Interfaces/Ports

Management Port

Yes

Capacity

Virtual interfaces (VLANs) : 10
IPSec VPN tunnels : 5

Network / Transport Protocol

TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, PPPoA, IPoA

Routing Protocol

RIP-1, RIP-2, IGMPv2, IGMP, static IP routing, GRE, policy-based routing (PBR)

Remote Management Protocol

SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS

Encryption Algorithm

DES, Triple DES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2

Authentication Method

RADIUS, Radio Service Set ID (SSID)

Features

Firewall protection, DHCP support, NAT support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, traffic shaping, Stateful Packet Inspection (SPI), DoS attack prevention, dynamic DNS server, DiffServ support, MAC address filtering, Broadcast Storm Control, VPN passthrough, High Availability, URL filtering, firmware upgradable, Low-latency queuing (LLQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, IPSec Virtual Private Network (VPN), Wi-Fi Multimedia (WMM) support, event log, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, DNS proxy, port forwarding, IPv4 support

RAM

64 MB

Flash Memory

32 MB

Status Indicators

Power, phone, WLAN, WAN, LAN

IP Telephony

VoIP Functionality

VoIP phone adapter

VoIP Protocols

SIP v2

Video Codecs

G.711, G.723.1, G.729ab, G.726, T.38

Telephony Interfaces

1 line (FXO), 4 phone (FXS)

IP Telephony Features

Echo cancellation, comfort noise generation (CNG), voice activity detection (VAD), call forwarding, caller ID, call waiting, call hold, call transfer, silence suppression, DTMF generation/detection

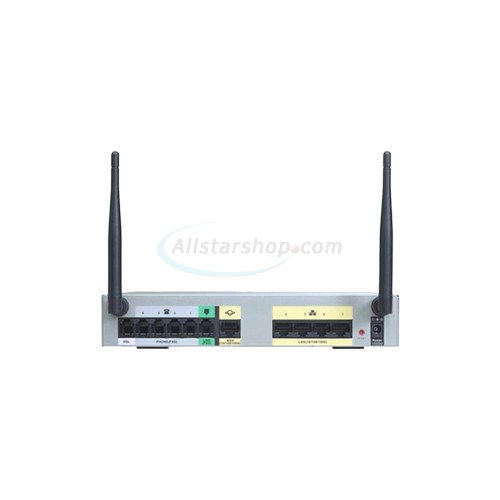

Expansion / Connectivity

Interfaces

LAN : 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Phone line : 1 x FXO - RJ-11
Phone line : 4 x FXS - RJ-11
Hi-Speed USB : 2 x 4 pin USB Type A
WAN : 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Antenna

Antenna

External detachable

Miscellaneous

Cables Included

1 x network cable
1 x phone cable

Compliant Standards

CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, AS/NZS 60950-1, RSS-210, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, FCC CFR47 Part 15, EN300-386, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1

Antenna

Antenna Qty

2

Gain Level

2.2 dBi

Power

Power Device

Power adapter - external

Voltage Required

AC 120/230 V

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

5 - 95% (non-condensing)
