Asus TUF GAMING Z790-PRO WIFI Z790 LGA1700 ATX Motherboard

Support: (812)282-2787

Asus TUF GAMING Z790-PRO WIFI Z790 LGA1700 ATX Motherboard

SKU:	800-51060F

Integrated Intel Graphics - HDMI / DisplayPort
Max 192GB / 4x DDR5 DIMM / Up to 7800(O.C.)
4x SATA 6Gb/s, 4x M.2 / RAID 0, 1, 5, 10
5x USB 3.2 G2 (3x USB-C), 6x USB 3.2 G1, 4x USB 2.0
1x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x16, 1x PCIe 3.0

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Core i5-14600K 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-14700K 20-Core LGA1700 w/33MB cache CPU (BOX)

: Intel Core i9-14900K 24-Core LGA1700 w/36MB cache CPU (BOX)

TUF GAMING Z790-PRO WIFI combines Intel 14th Gen Core processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z790 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7800+(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(.). / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory

Maximum RAM

192GB

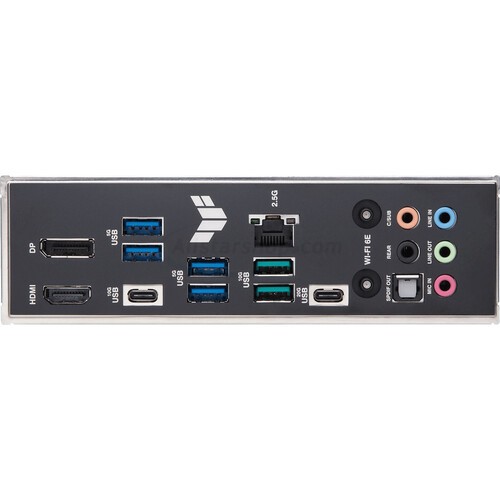

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
4 x USB 3.2 Gen1 Type-A ports
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 max x4
1 x PCIe 4.0 x4
1 x PCIe 3.0 x16 max x1
1 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Intel 2.5Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E & Bluetooth v5.3

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2x2 Type-C port via header
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
