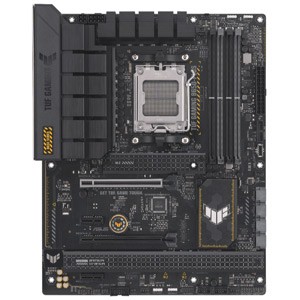

Asus TUF GAMING B650-PLUS WIFI AMD B650 AM5 ATX Motherboard

Support: (812)282-2787

Asus TUF GAMING B650-PLUS WIFI AMD B650 AM5 ATX Motherboard

SKU:	800-51184E

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 6400+ (O.C.)
4x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
4x USB 3.2 G2 (2x USB-C), 3x USB 3.2 G1, 8x USB 2.0
2x PCIe 4.0 x16, 2x PCIe 4.0 x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)

: Kingston Fury Beast 32GB Kit (2x16GB) DDR5-5200 CL36 288-pin DIMM

ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Description

Specifications

CPU Support

AMD Ryzen 7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B650

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800, ECC and Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
4 x USB 2.0
1 x DisplayPort
1 x HDMI port
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 4.0 x 16 (msx x4)
2 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 5.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5 Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6 & Bluetooth v5.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
2 x USB 3.2 Gen2 Type-A port via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Serial/Parallel Ports

1 x Serial port via header

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
