SKU: 850-51008F

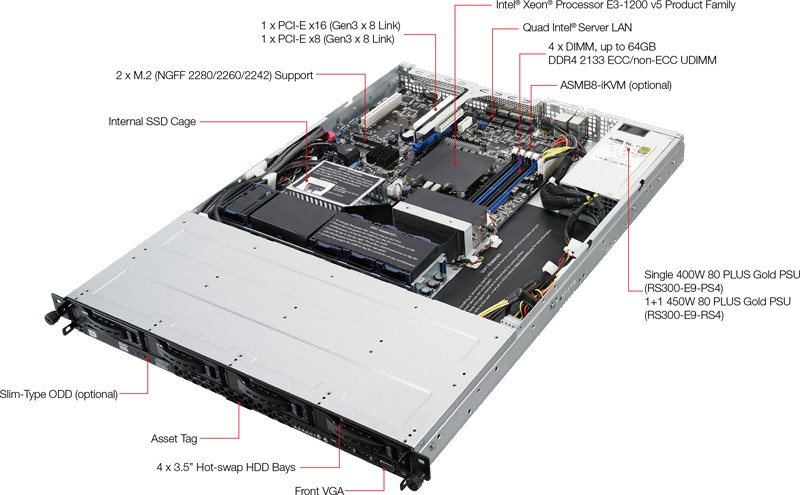

  • LGA1151 Xeon processor E3-1200 v5
  • Max 64GB DDR4 2133 UDIMM (4 DIMMs)
  • 4 x 3.5" SATA bays
  • Intel i210 Gigabit Ethernet controller
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 1U
  • 24.21" x 17.48" x 1.73"
Processor
    LGA1151 socket for:
    • Intel Xeon processor E3-1200 v5
    • 6th Generation Intel Core i3/Pentium/Celeron Processors
    • Single (Not Included)
Chipset
Intel C232 chipset
Type of Memory Supported
288-pin DDR4 2133 MHz ECC or non-ECC un-buffered memory
Maximum Memory Supported
64GB
Number of Memory Slots
4
Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x8
Front I/O Ports
  • 2 x USB 3.0 ports
  • 1 x VGA port
Rear I/O Ports
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 3.0 (USB 3.1 Gen1)
  • 2 x USB 2.0
  • 1 x 15-pin VGA
  • 4 x RJ45 LAN ports
  • 1 x RJ45 Dedicated server management port
Video
Aspeed AST2400 32MB
LAN
  • 4 x Intel i210 Gigabit LAN
  • 1 x Mgmt LAN
SATA / SAS
  • 6 x SATA 6Gb/s (4 by mini SAS HD)
  • 2 x M.2 Socket 3 (for M Key, type 2242/2260/2280 storage devices)
USB Port (s)
    Front I/O:
    • 2 x USB 3.0 ports
    Back I/O:
    • 2 x USB 3.0 ports
    • 2 x USB 2.0 ports
Ext. Drive Bays
4 x 3.5"
Power
400W 80+ GOLD Power Supply
Motherboard Manufacturer
ASUS P10S-C/4L

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
