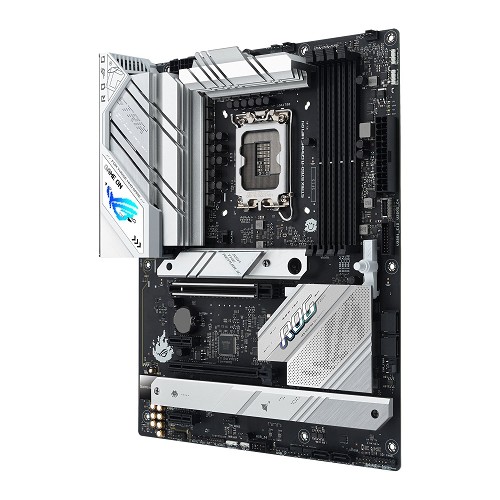

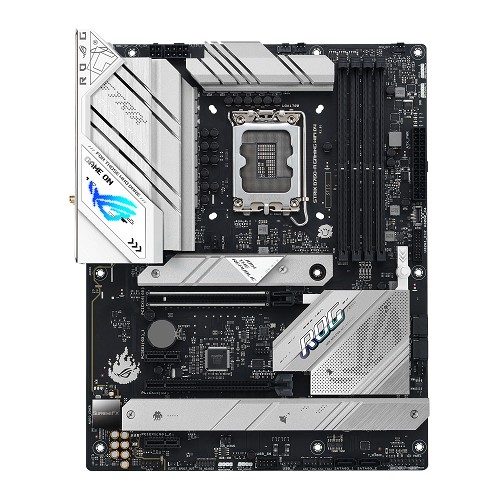

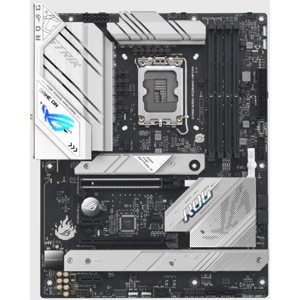

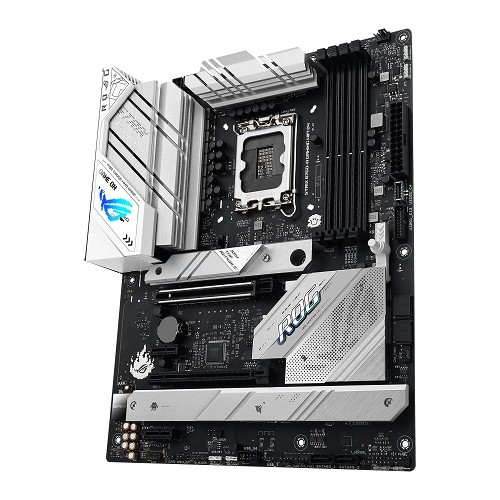

Asus ROG STRIX B760-A GAMING WIFI D4 B760 LGA1700 ATX Motherboard - (Discontinued)

Support: (812)282-2787

Asus ROG STRIX B760-A GAMING WIFI D4 B760 LGA1700 ATX Motherboard - (Discontinued)

SKU:	800-51199A

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
3x USB 3.2 G2 (2x USB-C), 5x USB 3.2 G1 (1x USB-C), 7x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)

: Intel Core i9-13900 24-Core LGA1700 w/36MB cache CPU (BOX)

On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5333(O.C.) / 5066(O.C.) / 5000(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4000(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-A port
1 x USB 3.2 Gen1 Type-C port
2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x DisplayPort .
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (max x4)
2 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Intel 2.5Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E & Bluetooth v5.3

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 on Back Panel I/O
3 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
