SKU: 800-51162E
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
  • 4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
  • 3x USB 3.2 G2 (2x USB-C), 4x USB 3.2 G1, 7x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 2x PCIe x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B660 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-5333(O.C.) / 5000(O.C.) / 4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen1 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 4 x USB 2.0 ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Wi-Fi Module
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0/4.0/3.0 x16
  • 1 x PCIe 3.0 x16 (max x4)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 2 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x2 mode
  • Integrated SATA/SAS RAID
    RAID 0, 1, 5, 10
    Integrated Audio
    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    Integrated Video
    Integrated Intel Graphics from processor
    Integrated LAN
    Intel 2.5Gb Ethernet
    Integrated Wifi
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) & Bluetooth v5.2
    USB
    • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
    • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.2 Gen2 Type-C port via header
    • 1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
    • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
    • 2 x USB 3.2 Gen1 Type-A ports via header
    • 4 x USB 2.0 ports on Back Panel I/O
    • 3 x USB 2.0 ports via header
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

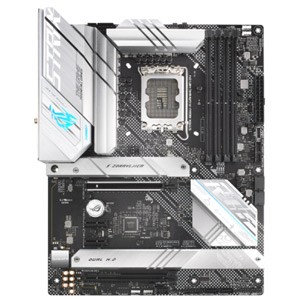

    • ROG STRIX B660-A GAMING WIFI D motherboard
    • User's Manual
    • Supporting DVD
    • 4 x SATA cables
    • 1 x ASUS Wi-Fi moving antennas
    • 1 x Cable ties pack
    • 1 x M.2 Rubber Package
    • 1 x M.2 Q-Latch package
    • 1 x ROG key chain
    • 1 x ROG Strix stickers
    • 1 x ROG Strix thank you card
