SKU: 800-51141C
  • Max 128GB / 4x DDR4 DIMM / Up to 4600+(O.C.)
  • 8x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 4x USB 3.2 G2 (1x USB-C), 4x USB 3.2 G2/G1, 2x USB 3.2 G1, 8x USB 2.0
  • 3x PCIe x16, 1x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 Ryzen 5000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
  • 3rd Gen AMD Ryzen: DDR4 4600+(O.C) / 4533(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 /2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
  • 2nd Gen AMD Ryzen: DDR4 3200 / 3000 / 2933 /2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
Maximum RAM
128 GB
Back Panel I/O
  • 3 x USB 3.2 Gen2 Type-A ports
  • 1 x USB 3.2 Gen2 Type-C port
  • 4 x USB 3.2 Gen2 (3rd Gen Ryzen) / Gen1 (2nd Ryzen) Type-A ports
  • 4 x USB 3.2 Gen1 Type-A ports
  • 2 x RJ45 LAN
  • 1 x Audio I/O
  • 1 x ASUS Wi-Fi Module
Number of PCI/PCI-Express Slots
  • 2 x PCIe x16:
    • 3rd Gen Ryzen: 2 x PCIe 4.0 x16 (x16 or dual x8)
    • 2nd Gen Ryzen: 2 x PCIe 3.0 x16 (x16 or dual x8)
    • 2nd Gen Ryzen with Radeon Vega Graphics: 1 x PCIe 3.0 x16 (x8 mode)
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 4.0 x1
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280:
    • 3rd Gen AMD Ryzen Processors: PCIE 4.0 x4 and SATA modes
    • 2rd Gen AMD Ryzen Processors: PCIE 3.0 x4 and SATA modes
  • 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 PCIE 4.0 x4 and SATA modes storage devices support
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC
Integrated LAN
  • Realtek RTL8125-CG 2.5G Gigabit LAN
  • Intel I211-AT Gigabit LAN
  • Intel Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax
  • Bluetooth 5.0
USB
  • 3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen2 (3rd Gen Ryzen) / Gen1 (2nd Ryzen) Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports via headers
  • 4 x USB 2.0 ports via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

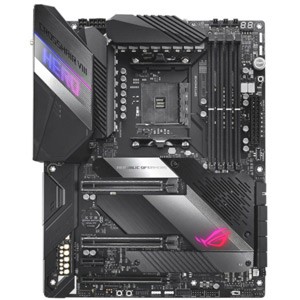

  • ROG CROSSHAIR VIII HERO motherboard
  • User's manual
  • 4 x SATA 6Gb/s cables
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ROG big sticker
  • 1 x Q-Connector
  • 1 x Wi-Fi Antenna
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1 x ROG coaster
  • 1 x ROG Thank you card
