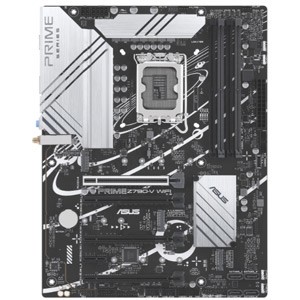

Asus Prime Z790-V WIFI Z790 LGA1700 ATX Motherboard - (Discontinued)

Support: (812)282-2787

Asus Prime Z790-V WIFI Z790 LGA1700 ATX Motherboard - (Discontinued)

SKU:	800-51095F

Integrated Intel Graphics - HDMI
Max 192GB / 4x DDR5 DIMM / Up to 7200(O.C.)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
2x USB 3.2 G2 (1x USB-C), 7x USB 3.2 G1 (1x USB-C), 8x USB 2.0
1x PCIe 5.0 x16, 3x PCIe 4.0 x16, 1x PCIe 3.0 x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Kingston Fury Beast 32GB Kit DDR5-5600 CL40 288-pin DIMM

: Kingston Fury Beast 64GB Kit DDR5-5600 CL40 288-pin DIMM

: Kingston Fury Beast RGB 32GB Kit DDR5-5600 CL40 288-pin DIMM

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-V WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Description

Specifications

CPU Support

LGA1700 socket for 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z790 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory

Maximum RAM

192GB

Back Panel I/O

1 x PS/2 Keyboard/Mouse combo
1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-A port
2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 (max x4)
1 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 & SATA mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek Gigabit Ethernet

Integrated Wifi

Wi-Fi 5 & Bluetooth v5.0

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
4 x USB 3.2 Gen1 Type-A ports via headers
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Serial/Parallel Ports

1 x Serial port via header

PS/2 Ports

1 x PS/2 Keyboard/Mouse combo

Form Factor

ATX

Dimensions

12" x 9.2"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
