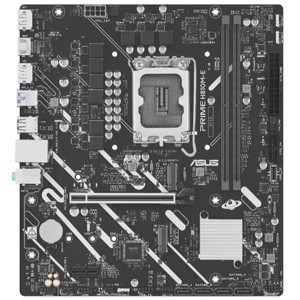

Asus PRIME H810M-E-CSM H810 LGA1851 mATX Motherboard

Support: (812)282-2787

Asus PRIME H810M-E-CSM H810 LGA1851 mATX Motherboard

SKU:	800-51067H

Integrated Intel Graphics - HDMI, 2x DisplayPort
Max 128GB / 2x DDR5 DIMM / Up to 6400
4x SATA 6GB/s, 12x M.2
Up to 5x USB 3.2 G1 (1x USB-C), 6x USB 2.0
1x PCIe 4.0 x16, 1x PCIe 4.0 x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core Ultra 5 245K 14-Core LGA1851 w/24MB cache CPU (BOX)

: Intel Core Ultra 5 235 14-Core LGA1851 w/24MB cache CPU (BOX)

: Intel Core Ultra 7 265K 20-Core LGA1851 w/30MB cache CPU (BOX)

Engineered to unleash the full potential of the Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Description

Specifications

CPU Support

LGA1851 socket for Intel Core Ultra Processors (Series 2)

Number of Processor (s)

Single (Not Included)

Chipset

Intel H810 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-6400 Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x HDMI
2 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2280 supports PCIe 4.0 x4 mode
1 x M.2 with M key, type 2242/2260/2280 supports PCIe 4.0 x2 mode

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek. Gigabit LAN

USB

2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
2 x USB 3.2 Gen1 ports via header
4 x USB 2.0 on Back Panel I/O
2 x USB 2.0 via header

Serial/Parallel Ports

1 x Serial port via header

Form Factor

Micro ATX

Dimensions

9.6" x 8.75"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
