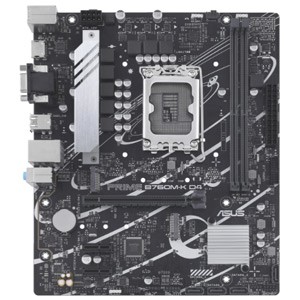

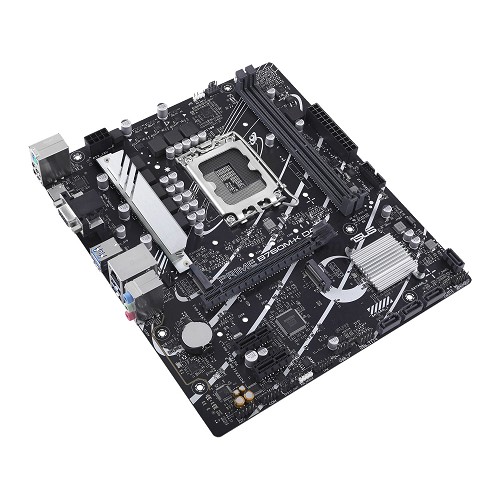

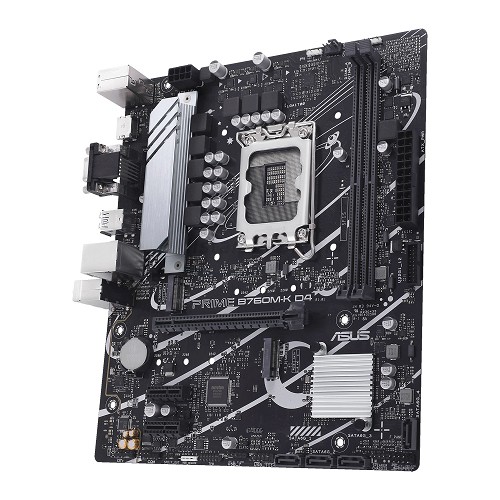

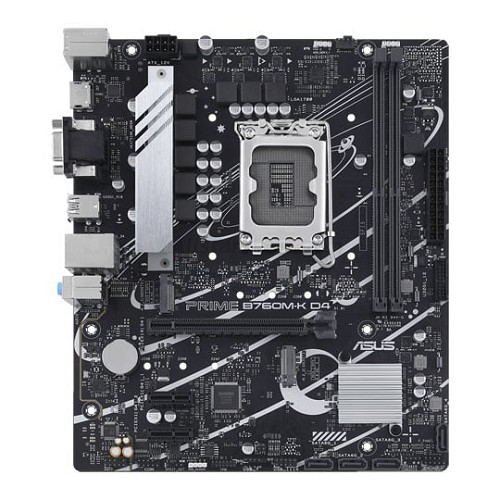

Asus PRIME B760M-K D4 B760 LGA1700 mATX Motherboard - (Discontinued)

Support: (812)282-2787

Asus PRIME B760M-K D4 B760 LGA1700 mATX Motherboard - (Discontinued)

SKU:	800-51081F

Integrated Intel Graphics - HDMI / VGA
Max 64GB / 2x DDR4 DIMM / Up to 5333(O.C.)
4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
6x USB 3.2 G1, 5x USB 2.0
1x PCIe 4.0 x16, 2x PCIe 4.0 x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Core i3-13100 4-Core LGA1700 w/12MB cache CPU (BOX)

: Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)

: Crucial 32GB DDR4-3200 PC4-25600 CL22 288-pin UDIMM

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5333(O.C.) / 5066(O.C.) / 5000(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4000(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 Non-ECC, Un-buffered Memory

Maximum RAM

64GB

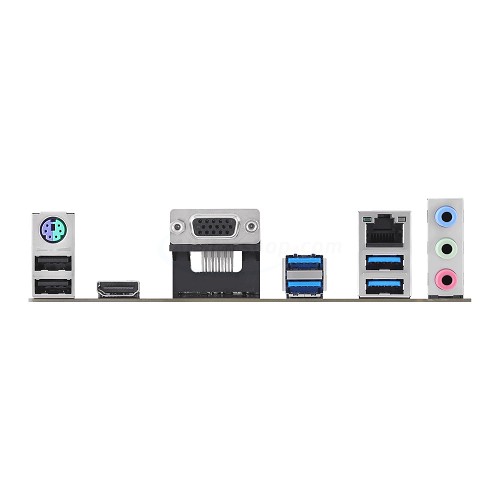

Back Panel I/O

1 x PS/2 Keyboard/Mouse combo port
4 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
1 x VGA
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
2 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek 2.5Gb Ethernet

USB

4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O
3 x USB 2.0 via headers

Serial/Parallel Ports

1 x Serial port via header

PS/2 Ports

1 x PS/2 Keyboard/Mouse combo port

Form Factor

Micro ATX

Dimensions

9.6" x 8.3"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
