SKU: 800-51091F
  • Integrated Intel Graphics - HDMI / DisplayPort / VGA
  • Max 192GB / 4x DDR5 DIMM / Up to 7200(O.C.)
  • 4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
  • 3x USB 3.2 G2 (1x USB-C), 4x USB 3.2 G1 (1x USB-C), 6x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B760 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-7200+(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
128GB

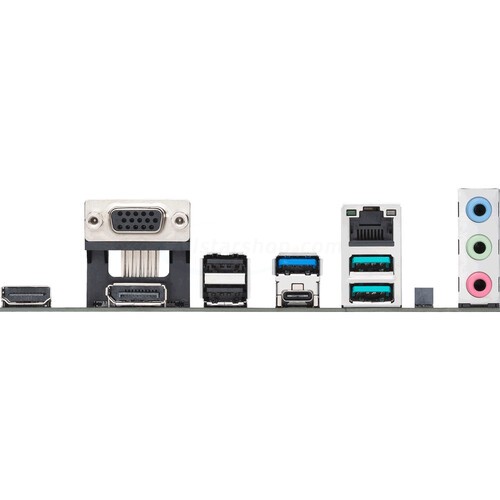

Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 2 x USB 3.2 Gen2 Type-A ports
  • 1 x USB 3.2 Gen1 Type-A port
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x VGA
  • 1 x HDMI
  • 1 x Vertical M.2 slot
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (max x4)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x2 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek 2.5Gb Ethernet
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 3.2 Gen1 Type-A port via header
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

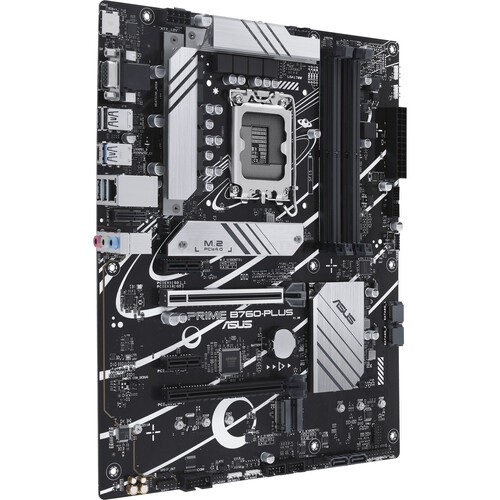

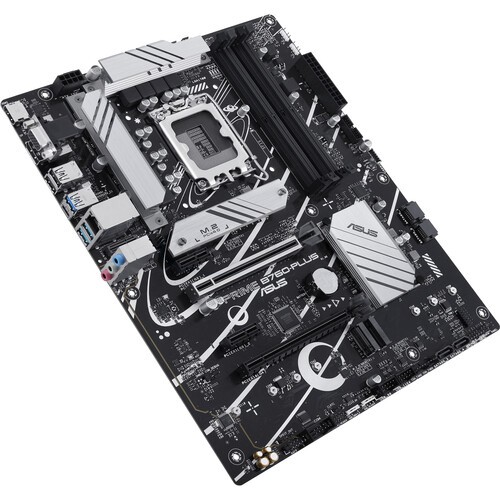

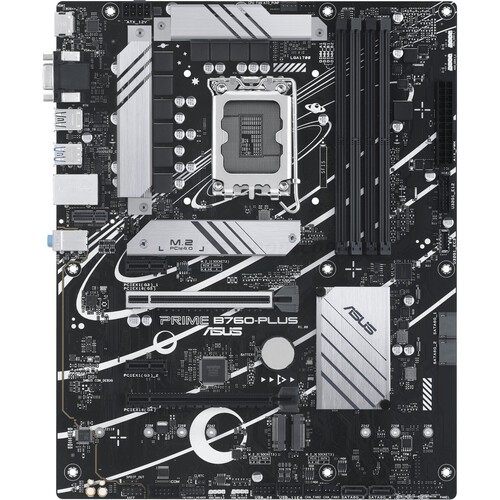

  • Asus PRIME B760-PLUS motherboard
  • User Manual
  • 1 x I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x M.2 Rubber Package
  • 2 x Screw Packages

Compatible Accessories

CPU

Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)
  • 14x Cores / 20x Threads / Turbo Boost: 4.8 GHz
  • P-core: 6 / Base: 2.5 GHz / Turbo: 4.8 GHz
  • E-core: 8 / Base: 1.8 GHz / Turbo: 3.5 GHz
  • Base: 65W / Max Turbo 154W
  • Intel UHD Graphics 770 / Heatsink/Fan Included
Manufacturer: Intel
Mfg P/N: BX8071513500
Availability: Usually ships with 1-2 business days
Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)
  • 16x Cores / 24x Threads / Turbo Boost: 5.2 GHz
  • P-core: 8 / Base: 2.1 GHz / Turbo: 5.1 GHz
  • E-core: 8 / Base: 1.5 GHz / Turbo: 4.1 GHz
  • Base: 65W / Max Turbo 219W
  • Intel UHD Graphics 770 / Heatsink/Fan Included
Manufacturer: Intel
Mfg P/N: BX8071513700
Availability: Usually ships with 1-2 business days

Memory

Crucial 32GB DDR5-5200 PC5-41600 CL42 288-pin UDIMM
  • PC5-41600
  • Dual-Rank x8
  • DDR5-5200 42-42-42 @ 1.1V
Manufacturer: Crucial
Mfg P/N: CT32G52C42U5
Availability: Usually ships with 1-2 business days
Crucial 32GB DDR5-5600 PC5-44800 CL46 288-pin UDIMM
  • PC5-44800
  • Dual-Rank x8
  • DDR5-5600 46-45-45 @ 1.1V
Manufacturer: Crucial
Mfg P/N: CT32G56C46U5
Availability: Usually ships with 1-2 business days
Kingston 32GB DDR5-4800 CL40 2Rx8 288-pin DIMM
  • PC5-38400
  • Dual-Rank x8
  • DDR5-4800 40-39-39 @ 1.1V
Manufacturer: Kingston
Mfg P/N: KVR48U40BD8-32
Availability: Usually ships same day
Kingston 32GB DDR5-5200 CL42 2Rx8 288-pin DIMM
  • PC5-41600
  • Dual-Rank x8
  • DDR5-4200 42-42-42 @ 1.1V
Manufacturer: Kingston
Mfg P/N: KVR52U42BD8-32
Availability: Usually ships with 1-2 business days
Kingston Fury Beast 32GB DDR5-5600 CL40 288-pin DIMM
  • PC5-44800
  • Default: DDR5-4800 CL40-39-39 @ 1.1V
  • XMP 1: DDR5-5600 CL40-40-40 @ 1.25V
  • XMP 2: DDR5-5200 CL40-40-40 @ 1.25V
  • XMP 3: DDR5-4800 CL38-38-38 @ 1.1V
Manufacturer: Kingston
Mfg P/N: KF556C40BB-32
Availability: Usually ships with 1-2 business days

SSD

Samsung 990 PRO 1TB PCIe 4.0 NVMe SSD
  • Sequential Read (up to): 7450 MB/s / Write (up to): 6900 MB/s
  • Random 4KB Read (up to): 1200000 IOPS / Write (up to): 1550000 IOPS
  • Endurance Rating: 600 TBW
  • MTBF: 1.5M hours
  • Form Factor: M.2 22 x 80mm
Manufacturer: Samsung
Mfg P/N: MZ-V9P1T0B/AM
Availability: Usually ships with 1-2 business days
WD_BLACK SN850X 1TB PCIe Gen4 NVMe x4 M.2 2280 SSD
  • Sequential Read (up to): 7,300MB/s / Write (up to): 6,300MB/s
  • Random Read (up to): 800K IOPS / Write (up to): 1,100K IOPS
  • Endurance Rating: 600 TBW
  • Form Factor: M.2 22 x 80mm
Manufacturer: Western Digital
Mfg P/N: WDS100T2X0E
Availability: Usually ships with 1-2 business days

Software

Microsoft Windows 11 Home 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: KW9-00633
Availability: Usually ships with 1-2 business days
Microsoft Windows 11 Pro 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: FQC-10529
Availability: Usually ships same day
