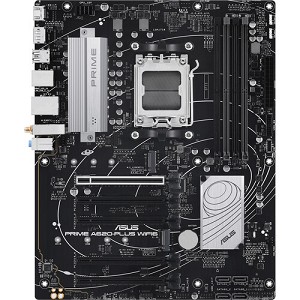

Asus PRIME A620A-PLUS WIFI AMD A620A AM5 ATX Motherboard

Support: (812)282-2787

Asus PRIME A620A-PLUS WIFI AMD A620A AM5 ATX Motherboard

SKU:	800-51034F

Integrated Radeon Graphics - HDMI / DisplayPort
Max 256GB / 4x DDR5 DIMM / Up to 7600+ (O.C.)
4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 5, 10
6x USB 3.2 G1 (2x USB-C), 7x USB 2.0
1x PCIe 4.0 x16, 4x PCIe 3.0 x16 (x1)

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 5 9600X 6-Core 3.9GHz /6MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 9900X 12-Core 4.4GHz /12MB cache AM5 CPU (Retail)

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME A620A-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD A620A

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

Up to DDR5-7600+ ECC and Non-ECC Un-buffered DIMM

Maximum RAM

256GB

Back Panel I/O

1 x PS/2 keyboard/mouse combo port
2 x USB 3.2 Gen1 Type-A ports
1 x USB 3.2 Gen1 Type-C port
3 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi module

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16:
- Ryzen 9000 & 7000 PCIe 4.0 x16
- Ryzen 8000 PCIe 4.0 x16 (x8/x4 electrical)
4 x PCIe 3.0 x16 (x1 electrical)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 3.0 x4/x2 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 1Gb Ethernet

Integrated Wifi

Wi-Fi 6 & Bluetooth v5.3

USB

2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O

1 x USB 3.2 Gen1 Type-C port on Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports via header

1 x USB 3.2 Gen1 Type-C port via header

3 x USB 2.0 on Back Panel I/O

4 x USB 2.0 via headers

Serial/Parallel Ports

1 x Serial port via header

PS/2 Ports

1 x PS/2 keyboard/mouse combo port

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
