SKU: 800-51046E
  • Integrated Radeon Graphics - HDMI / DisplayPort
  • Max 196GB / 4x DDR5 DIMM / Up to 6400+ (O.C.)
  • 4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • 6x USB 3.2 G1 (2x USB-C), 7x USB 2.0
  • 1x PCIe 4.0 x16, 4x PCIe 3.0 x16 (x1)
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD Ryzen 7000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD A620
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC and Non-ECC, Un-buffered Memory
Maximum RAM
192GB

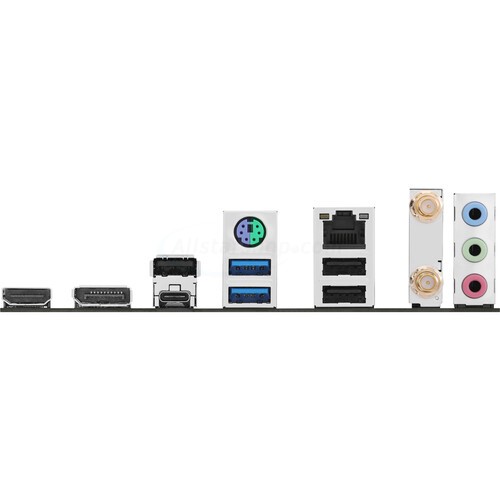

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse port
  • 1 x USB 3.2 Gen1 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 3 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 1 x Wi-Fi Module<
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 4 x PCIe 3.0 x16 (max x1)
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 3.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek Gigabit Ethernet
Wireless and Bluetooth
Wi-Fi 5 (802.11 a/b/g/n/ac) & Bluetooth v5.0
USB
  • 1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 3 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via headers
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 Keyboard/Mouse port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

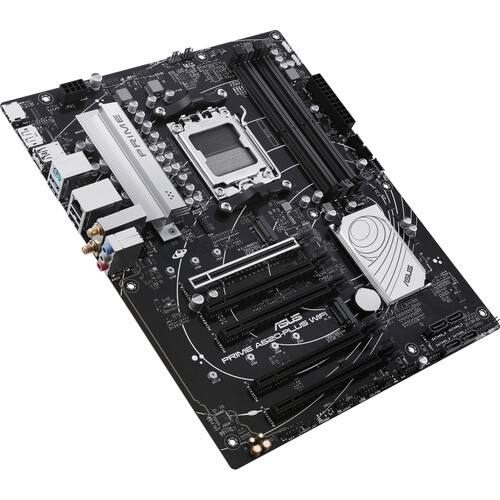

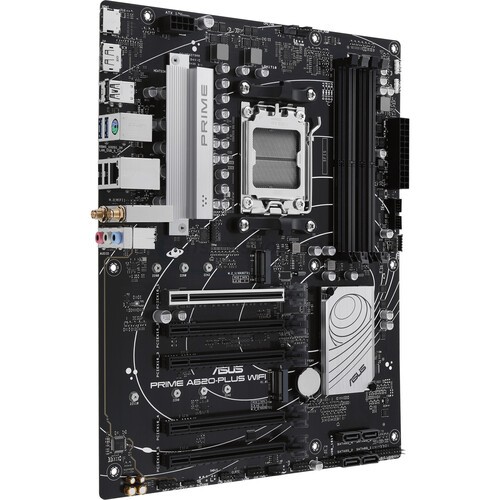

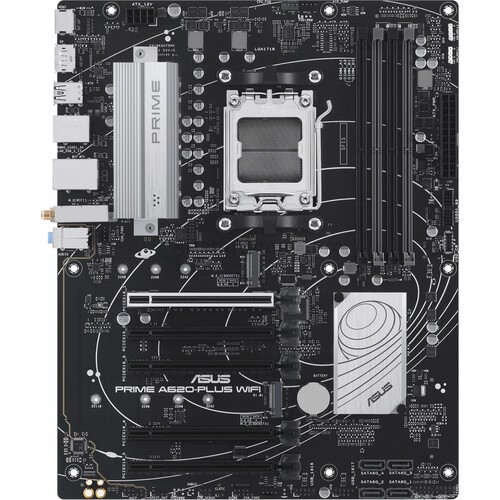

  • Asus PRIME A620-PLUS WIFI motherboard
  • User Manual
  • 1 x I/O Shield
  • 2 x SATA cables
  • 1 x Screw Package for M.2 SSD
  • 1 x ASUS Wi-Fi moving antenna
