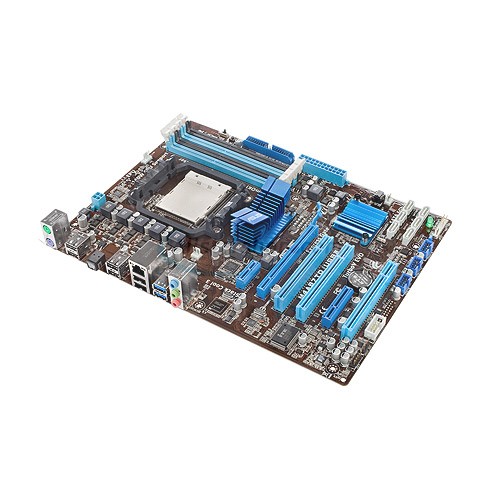

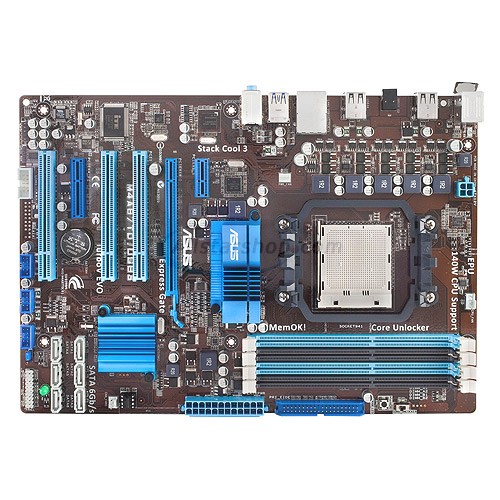

Asus M4A87TD/USB3 AMD 870 Socket AM3 DDR3/USB 3.0/SATA 6Gb/s ATX motherboard - (Discontinued)

Support: (812)282-2787

Asus M4A87TD/USB3 AMD 870 Socket AM3 DDR3/USB 3.0/SATA 6Gb/s ATX motherboard - (Discontinued)

SKU:

800-51159

Max 16GB / 4 x Dimm DDR3 2000(O.C.)/1600/1333/1066
6 x SATA 6Gb/s / RAID 0, 1, 10, 5 / 1 x IDE / 0 x FDD
Up to 2 x USB 3.0, 12 x USB 2.0
1 x PCI-E X16, 1 x PCI-E X4, 1 x PCI-E X1, 3 x PCI

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Asus Prime GeForce RTX 5060 Ti 16GB GDDR7 PCIe 5.0 Video Card

: Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC PCIe 5.0 Video Card

: Asus Prime GeForce RTX 5060 Ti 16GB GDDR7 OC PCIe 5.0 Video Card

The M4A87TD/USB3 features AMD 870 + SB850 chipset and supports AMD’s AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. ASUS Core Unlocker2 is the easiest way to intelligently unlock latent cores on AMD x2 and x3 CPUs via a single flip of a switch. No need to enter the BIOS! For instant performance boost, TurboV offers easy, real-time overclocking tunings while CPU Level UP provides users with a free CPU upgrade. USB 3.0 and SATA 6Gb/s unleashes the performance potential and frees up data transfer bottlenecks for high-capacity, high-speed storage. Ensure RAM compatibility at the touch of a button with ASUS MemOK!

Description

Specifications

CPU Support

Phenom II
Athlon II
Sempron 100

Number of Processor (s)

Single (Not Included)

Chipset

AMD 870
AMD SB850

System Bios

AMI BIOS

Video card slot

PCI-Express 2.0 X16

Number of Memory Slots

Type of Memory Supported

DDR3 2000(O.C.)/1600/1333/1066 ECC,Non-ECC,Un-buffered Memory

Maximum RAM

16GB

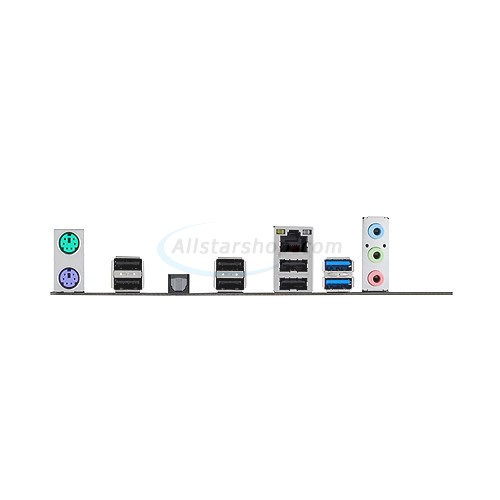

Back Panel I/O

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out
2 x USB 3.0/2.0 ports
6 x USB 2.0/1.1 ports
1 x LAN(RJ45) port
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCI-Express X16
1 x PCI-Express X4
1 x PCI-Express X1
3 x PCI

Number of ISA Slots (16 Bit)

On-Board EIDE/Floppy

1 x UltraDMA 133/100 for up to 2 PATA devices

On-Board IDE RAID

Integrated SATA/SAS

6 x SATA 6Gb/s

Integrated SATA/SAS RAID

Support RAID 0,1,5,10

Integrated Audio

VIA VT1818 8-Channel High Definition Audio CODEC

Integrated Video

Integrated LAN

Realtek 8111E Gigabit LAN

Integrated SCSI

USB

2 x USB 3.0 ports on Back Panel I/O
6 x USB 2.0 ports on Back Panel I/O
6 x USB 2.0 ports via headers

IEEE 1394

Form Factor

ATX

Dimensions

12" x 8.4"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.

Package Contents

ASUS M4A87TD/USB3 motherboard
User's manual
Driver CD
1 x Ultra DMA 133/100 cable
2 x Serial ATA 3.0Gb/s cables
1 x Serial ATA 6.0Gb/s cables
1 x IO Shield
2 in 1 Q-connector
