SKU: 800-26567A
  • Integrated Intel Graphics - HDMI / 2 x Thunderbolt4 USB4 Type-C
  • Max 128GB / 4x DDR5 DIMM / Up to 7000+ (O.C.)
  • 8x SATA 6Gb/s, 5x M.2 / RAID 0, 1, 5, 10
  • 2x USB4-C, 3x USB 3.2 G2 (1x USB-C),10x USB 3.2 G1, 6x USB 2.0
  • 2x PCIe 5.0 x16, 1x PCIe 4.0 x16
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1700 socket for 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z790 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-7000+(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Maximum RAM
128GB

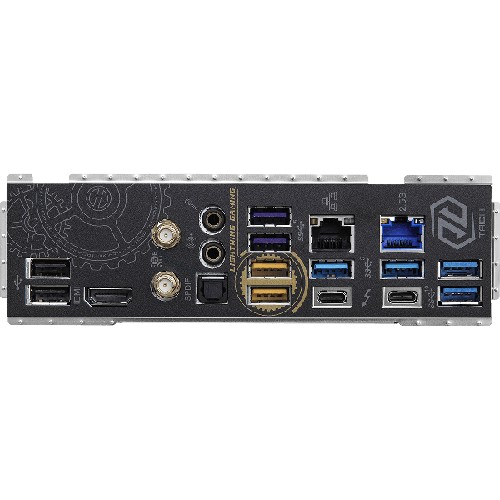

Back Panel I/O
  • 2 x USB4 Thunderbolt 4 Type-C ports
  • 2 x USB 3.2 Gen2 Type-A ports
  • 6 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0
  • 1 x HDMI
  • 2 x RJ-45 LAN
  • 1 x Audio I/O
  • 2 x Antenna ports
Number of PCI/PCI-Express Slots
  • 2 x PCIe 5.0 x16 (single x16, dual x8/x8)
  • 1 x PCIe 4.0 x16 (max x4)
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2280 supports PCIe 5.0 x4 mode
  • 1 x M.2 socket, with M key, type 2280 supports PCIe 4.0 x4 mode
  • 3 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC4082 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel 2.5Gb Ethernet
Integrated Wifi
802.11ax Wi-Fi 6E
USB
  • 2 x USB4 Thunderbolt 4 Type-C ports on Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 6 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 ports via headers
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via headers
Form Factor
E-ATX
Dimensions
12" x 10.5"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • ASRock Z790 Taichi motherboard
  • User Manual
  • 4 x SATA cable
  • 1 x Wireless Dongle USB Bracket
  • 1 x ASRock WiFi 2.4/5/6 GHz Antenna
  • 4 x Screws for M.2 Sockets
