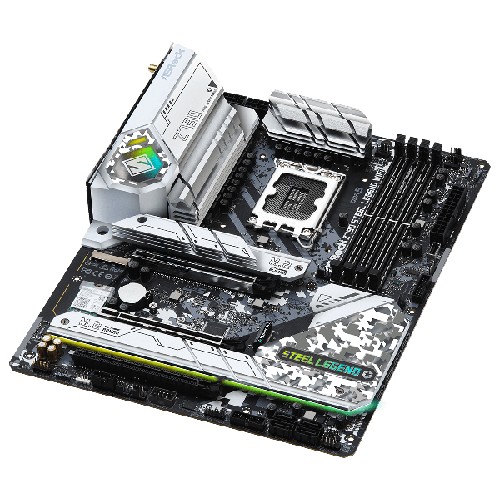

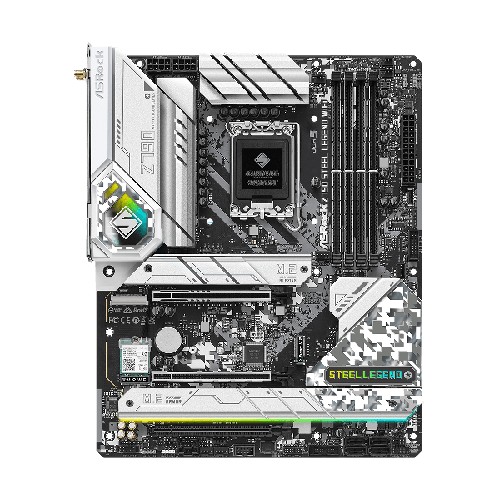

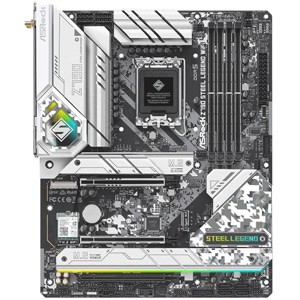

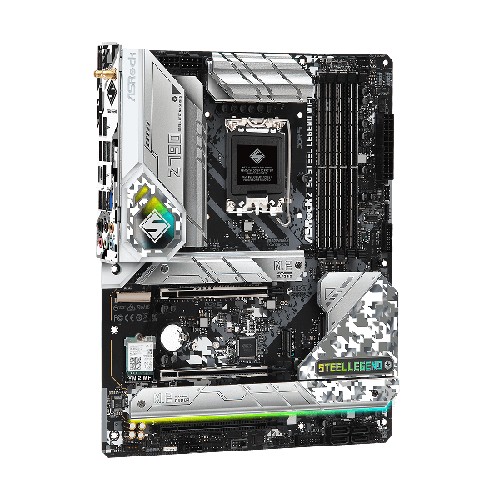

ASRock Z790 Steel Legend WiFi Z790 LGA1700 ATX Motherboard

Support: (909) 590-8308

ASRock Z790 Steel Legend WiFi Z790 LGA1700 ATX Motherboard

SKU:	800-26569C

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 6800+(O.C.)
8x SATA 6Gb/s, 5x M.2 / RAID 0, 1, 5, 10
3x USB 3.2 G2 (2x USB-C), 12x USB 3.2 G1, 3x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Core i5-13600K 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700K 16-Core LGA1700 w/30MB cache CPU (BOX)

: Intel Core i9-13900K 24-Core LGA1700 w/36MB cache CPU (BOX)

The ASRock Z790 Steel Legend WiFi offers PCI-Express 5.0 16x primary slot for graphics cards, plus a Blazing M.2 PCI-Express 5.0 M.2 slot is available for the latest ultra-high speed NVMe SSDs. Its large, multi-layer M.2 heatsink ensures optimal cooling for storage devices, avoiding any throttling. Dual networking, with Dragon 2.5G Ethernet and the latest WiFi 6E, is built into the Z970 Steel Legend, giving users the freedom to choose multi-gig connections. A 16+1+1 SPS Dr.MOS VRM with a generous cooling heatsink ensures all LGA1700 processors can reach their full potential.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z790 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-6800+(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory

Maximum RAM

128GB

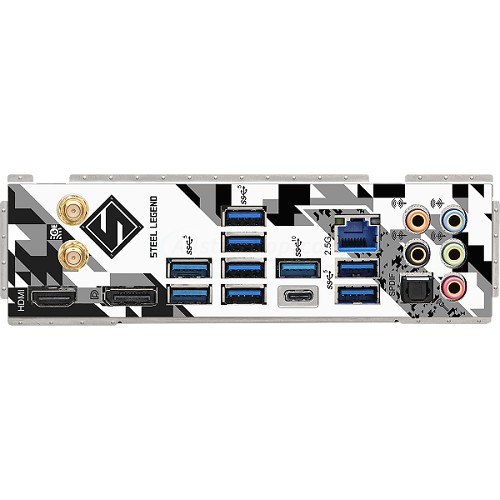

Back Panel I/O

1 x USB 3.2 Gen2 Type-A port
1 x USB 3.2 Gen2 Type-C port
8 x USB 3.2 Gen1 Type-A ports
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (max x4)
1 x PCIe 3.0 x16 (max x2)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2260/2280 supports PCIe 5.0 x4 mode
2 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek ALC897 7.1 High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Dragon RTL8125BG 2.5Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E & Bluetooth

USB

1 x USB 3.2 Gen 2x2 Type-C port via header
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
8 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports via headers
3 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asrock
