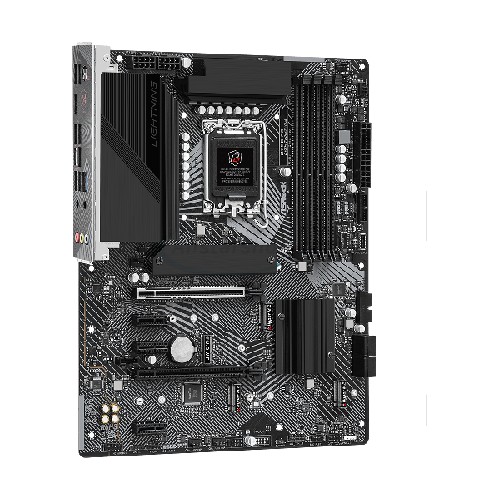

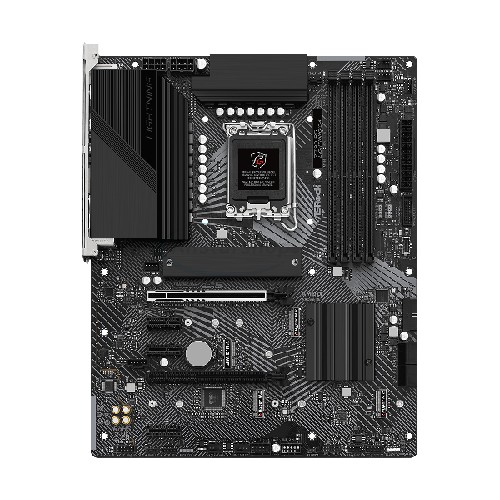

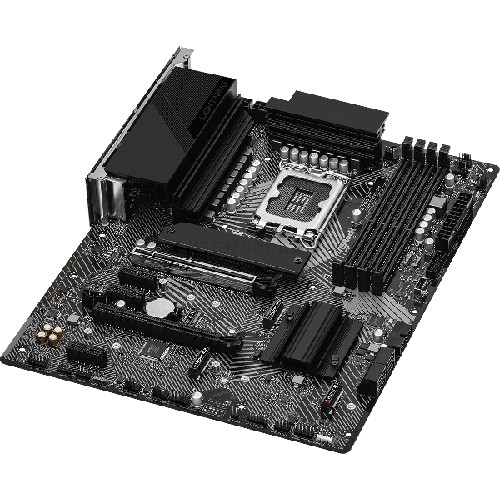

ASRock Z790 PG Lightning/D4 Z790 LGA1700 ATX Motherboard

Welcome to Allstarshop

This website uses cookies to provide you a personalized web experience. Using this website you agree to our use of cookies. If you require more information, please visit our Privacy Policy. Agree

ASRock Z790 PG Lightning/D4 Z790 LGA1700 ATX Motherboard

Support: (909) 590-8308

ASRock Z790 PG Lightning/D4 Z790 LGA1700 ATX Motherboard

SKU:	800-26579A

Integrated Intel Graphics - HDMI
Max 128GB / 4x DDR4 DIMM / Up to 5333+(O.C.)
4x SATA 6Gb/s, 4x M.2 / RAID 0, 1, 5, 10
3x USB 3.2 G2 (2x USB-C), 9x USB 3.2 G1, 3x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 3x PCIe 3.0 x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core i5-13600K 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700K 16-Core LGA1700 w/30MB cache CPU (BOX)

: Intel Core i9-13900K 24-Core LGA1700 w/36MB cache CPU (BOX)

Z790 PG Lightning/D4 offers four PCI-Express 4 M.2 NVMe SSD slots, ensuring class-leading expansion opportunity with incredible performance. In addition, powerful Dragon 2.5G Ethernet, convenient integrated IO shield and 14+1+1 Dr.MOS power phases with an extra-large VRM heatsink ensures reliable performance for every LGA1700 processor.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z790 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5333+(O.C.) / 5133(O.C.) / 5000(O.C.) / 4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Maximum RAM

128GB

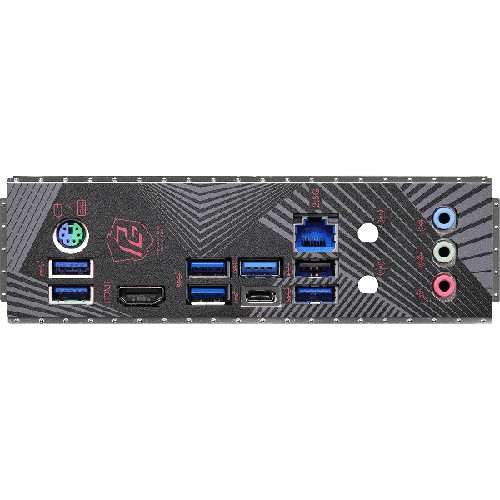

Back Panel I/O

1 x PS/2 Keyboard/Mouse combo port
1 x USB 3.2 Gen2x2 Type-C port
1 x USB 3.2 Gen2 Type-A port
5 x USB 3.2 Gen1 Type-A ports
1 x USB 2.0 port
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
3 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x4 & SATA mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek ALC897 7.1 High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Dragon RTL8125BG 2.5Gb Ethernet

USB

1 x USB 3.2 Gen2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
5 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports via headers
1 x USB 2.0 on Back Panel I/O
2 x USB 2.0 via header

PS/2 Ports

1 x PS/2 Keyboard/Mouse combo port

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asrock
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
Technical Support: Asrock (909) 590-8308
