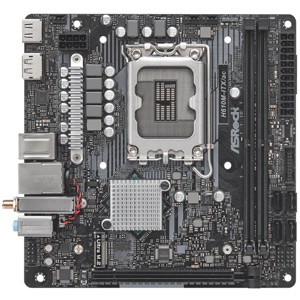

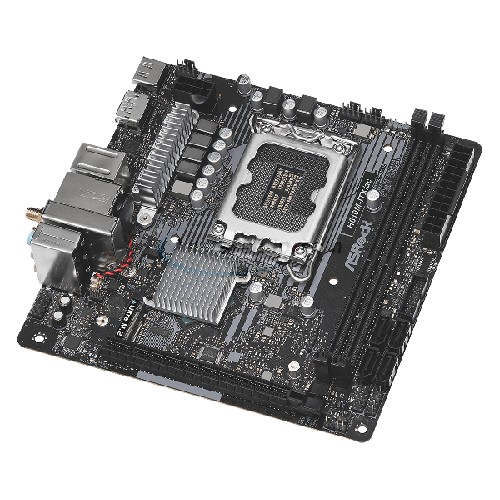

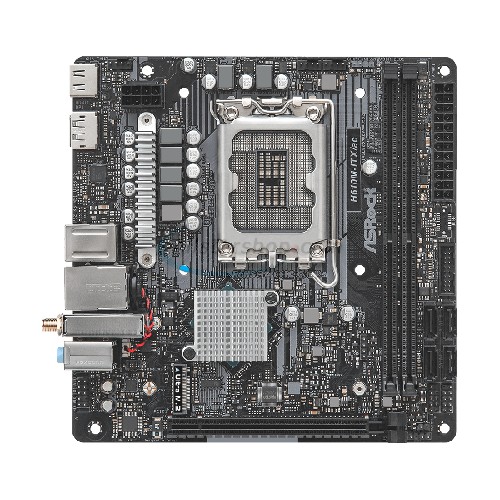

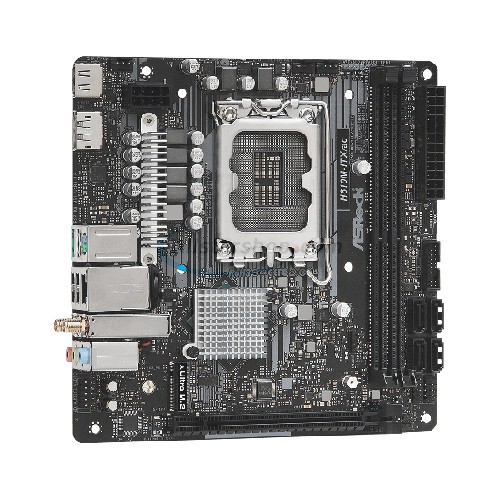

SKU: 800-26589
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 64GB / 2x DDR4 DIMM / Up to 3200
  • 4x SATA 6Gb/s, 1x M.2
  • 4x USB 3.2 G1, 4x USB 2.0
  • 1x PCIe 4.0 x16
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H610 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
64GB

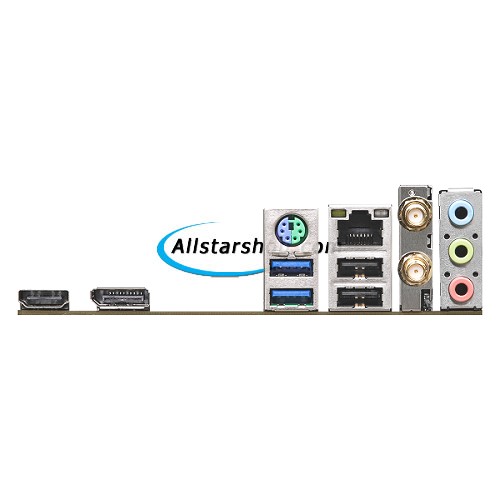

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 2 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ-45 LAN
  • 2 x Antenna ports
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
1 x PCIe 4.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 socket, with M key, type 2280 support PCIe 3.0 x4 & SATA mode
Integrated Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I219V Gigabit Ethernet
Integrated Wifi
802.11ac WiFi & Bluetooth
USB
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 2 x USB 2.0 ports via headers
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • H610M-ITX/ax motherboard
  • User's Manual
  • Supporting DVD
  • 1 x I/O Shield
  • 2 x SATA cables
  • 1 x Screw for M.2
  • 2 x ASRock WiFi 2.4/5/6 GHz Antennas
