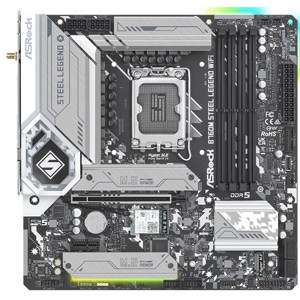

ASRock B760M Steel Legend WiFi B760 LGA1700 mATX Motherboard

Support: (909) 590-8308

ASRock B760M Steel Legend WiFi B760 LGA1700 mATX Motherboard

SKU:

800-26599

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 7200(O.C.)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
3x USB 3.2 G2 (2x USB-C), 6x USB 3.2 G1, 6x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)

: Kingston Fury Renegade RGB 32GB Kit (2 x 16GB) DDR5-6800 CL36 288-pin

ASRock B760M Steel Legend WiFi – Great Performance in High-End, Micro Builds
Ready for enthusiasts on a budget, the popular Steel Legend is optimized for great out-the-box performance with upgraded 12+1+1 Dr.MOS CPU VRMs with Nichicon 12K Black Caps, and a 6-layer PCB (2oz copper) with DDR5 optimized signal routing, the Steel Legend ensures lower operating temperatures and improved power efficiency to maximize longevity. Featuring extreme performance technologies including a PCI-Express 5.0 x16 slot, Dragon 2.5G Ethernet, Wi-Fi 6E connectivity with extreme speeds, and Nahimic Audio for gamers.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

1 x PS/2 Mouse/Keyboard Port
1 x USB 3.2 Gen2 Type-A port
1 x USB 3.2 Gen2 Type-C port
4 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

3 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek ALC897 7.1 CH HD Audio Codec

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Dragon RTL8125BG 2.5Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E & Bluetooth v5.3

USB

1 x USB 3.2 Gen2 Type-A port on Back Panel I/O

1 x USB 3.2 Gen2 Type-C port on Back Panel I/O

1 x USB 3.2 Gen2 Type-C port via header

4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports via header

2 x USB 2.0 on Back Panel I/O

4 x USB 2.0 via headers

PS/2 Ports

1 x PS/2 Mouse/Keyboard Port

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
