SKU: 800-26604
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR5 DIMM / Up to 7200(O.C.)
  • 4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
  • 7x USB 3.2 G1 (2x USB-C), 6x USB 2.0
  • 1x PCIe 4.0 x16, 1x PCIe 4.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B760 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x Keyboard/Mouse
  • 1 x USB 3.2 Gen1 Type-C port
  • 3 x USB 3.2 Gen1 Type-A ports
  • 4 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
2 x M.2 socket, with M key, type 2280 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC897 7.1 CH HD Audio Codec
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek RTL8125BG 2.5Gb Ethernet
USB
  • 1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via headers
  • 4 x USB 2.0 on Back Panel I/O
  • 2 x USB 2.0 via header
  • PS/2 Ports
    1 x PS/2 Keyboard/Mouse
    Form Factor
    Micro ATX
    Dimensions
    9.6" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: Asrock
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
    • Technical Support: Asrock (909) 590-8308

    Package Contents

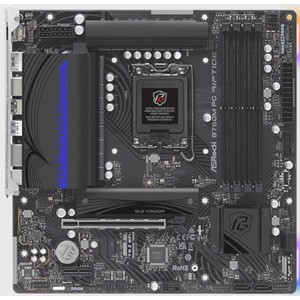

    • ASRoock B760M PG Riptide motherboard
    • User Manual
    • 2 x SATA cables
    • 2 x Screws for M.2 Sockets
