SKU: 800-26601
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
  • 4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
  • 1x USB 3.2 G2 (1x USB-C), 8x USB 3.2 G1 (1x USB-C), 4x USB 2.0
  • 2x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1x PCIe 3.0 x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B760 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-5333(O.C.) / 5066(O.C.) / 5000(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4000(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 Non-ECC, Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port
  • 5 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (max x4)
  • 1 x PCIe 3.0 x16 (max x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 2 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x2 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC897 7.1 CH HD Audio Codec
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
RTL8125BG 2.5Gb Ethernet
USB
  • 1 x USB 3.2 Gen2 Type-C port via header
  • 1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
  • 5 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 on Back Panel I/O
  • 2 x USB 2.0 via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

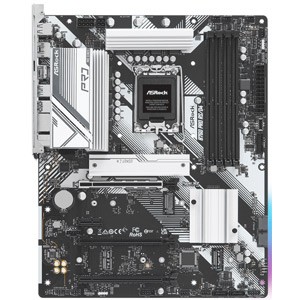

  • ASRoock B760 Pro RS/D4 motherboard
  • User Manual
  • 2 x SATA cables
  • 4 x Screws for M.2 Sockets
  • 1 x Standoff for M.2 Socket
