SKU: 800-26538E
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR4 DIMM / Up to 4800(O.C.)
  • 4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
  • 9x USB 3.2 G1 (1x USB-C), 6x USB 2.0
  • 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B660 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x PS/2 Mouse/Keyboard
  • 4 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x16 (max x16)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2260/2280 support PCIe 3.0 x2 & SATA mode
  • 1 x M.2 socket, with M key, type 2260/2280/22110 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I219V Gigabit Ethernet
USB
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports via headers
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 2 x USB 2.0 ports via header
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 Mouse/Keyboard
Form Factor
ATX
Dimensions
12"x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

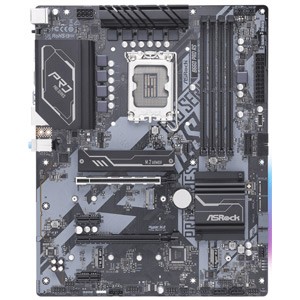

  • B660 Pro RS motherboard
  • User's Manual
  • Supporting CD
  • 1 x I/O Shield
  • 2 x SATA cables
  • 4 x M.2 SSD screws
  • 1 x Standoff for M.2
