SKU: 800-26547A
  • Max 64GB / 2x DDR4 DIMM / Up to 5400+(O.C.)
  • 4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 6x USB 3.2 G1, 2x USB 2.0
  • 1x PCIe x16
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR4 5400+(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 5000(O.C.) / 4933(O.C.) / 4866(O.C.) / 4800(O.C.) / 4733(O.C.) / 4666(O.C.) / 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
64GB

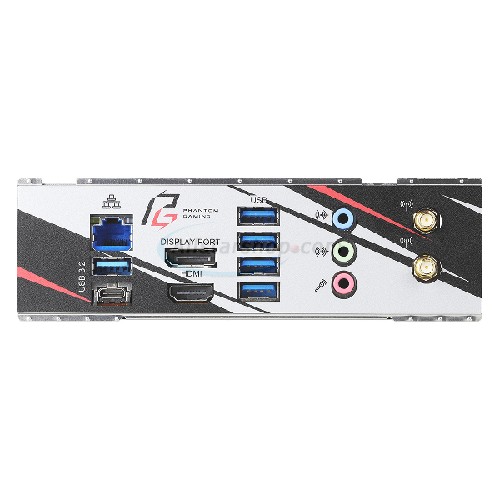

Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 4 x USB 3.2 Gen1 ports
  • 1 x HDMI
  • 1 x DisplayPort 1.4
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
  • 2 x Antenna ports
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
    1 x M.2 Socket, with M key, type 2280 storage devices support PCIe 4.0 x4 mode
  • x M.2 Socket, with M key, type 2280 storage devices support SATA & PCIe 3.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220 7.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel I225V 2.5 Gigabit LAN
Integrated Wifi
Intel 802.11ax WiFi Module 802.11a/b/g/n/ax
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen1 ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 2 x USB 2.0 ports via header
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

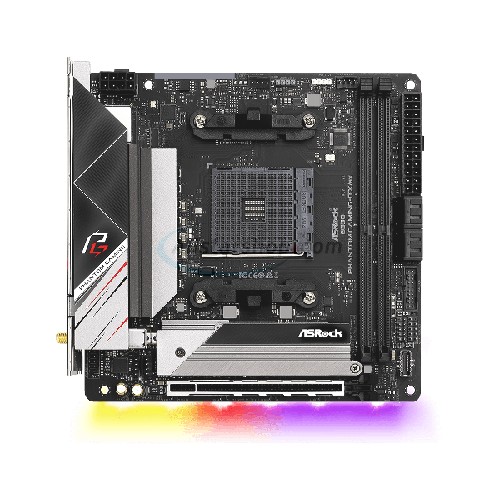

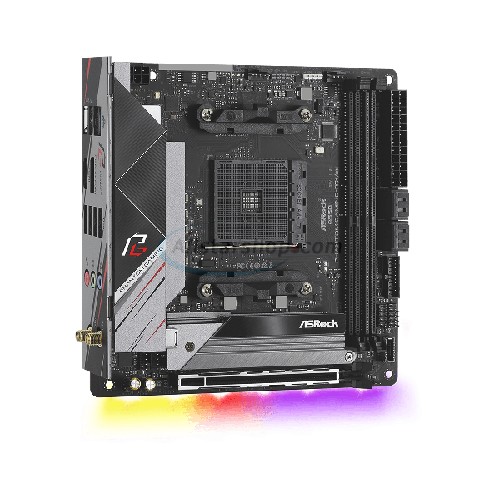

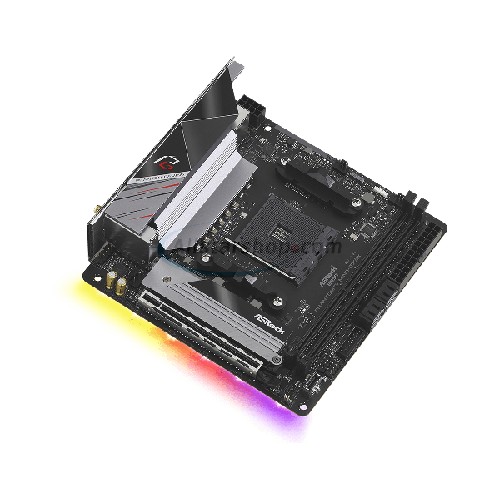

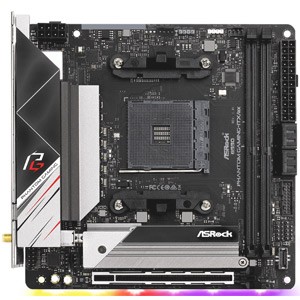

  • ASRock B550 Phantom Gaming-ITX/ax motherboard
  • Quick Installation Guide,
  • upport CD
  • 2 x SATA Data Cables
  • 1 x ASRock WiFi 2.4/5 GHz Antenna
  • 1 x Screw for M.2 Socket
