SKU: 992-16167
  • Efficiency up to 92%
  • 1 x +12V Rail
  • 2x 8-pin 12V
  • 8 x 6+2-pin PCI-E
  • Dimension: 150 x 170 x 86mm
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Efficiency
Up to 92%
Fans
1 x 135mm
Protection
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Version Support
ATX-12V 2.4
Current
6.5A-13A
Frequency
47Hz-63Hz
Output Power
1000W
Output Voltage
Output VoltageOutput Current
+3.3V25A
+5V25A
+12V183A
-12V0.3A
+5Vsb3A
Input Voltage
100-240 VAC

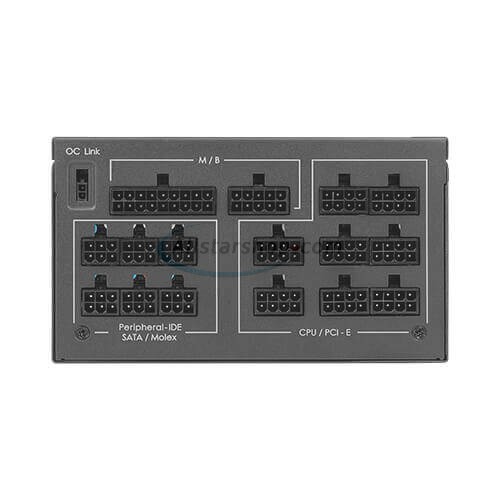

Connectors
  • 1 x 24-Pin Main Power
  • 2 x 4+4-pin ATX12V
  • 8x 6+2-pin PCI-E
  • 5 x Molex
  • 14 x SATA
  • 1x FDD
Dimensions
150 x 170 x 86mm
Certifications & Standards
80 Plus Platinum

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

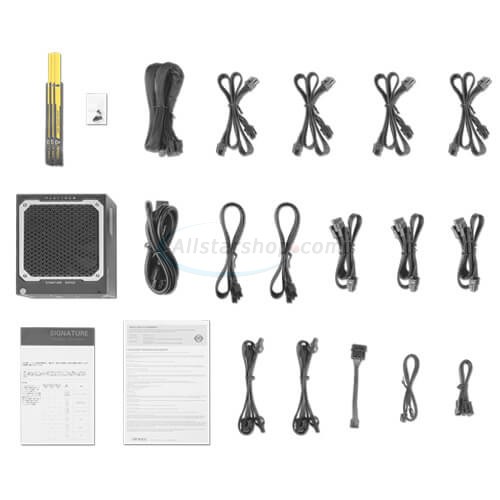

Package Contents

  • Power Supply
  • Power cables
  • Power Cord
