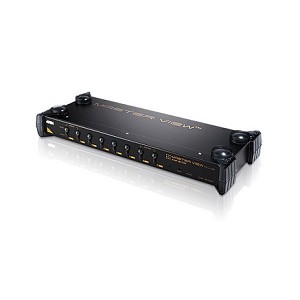

ATEN's new eight-port MasterView Plus is just the tool you need to help reduce the need for redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and down-right inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse. Just think of the time, space and money you'll save. But our MasterView Plus is much more than a simple eight-port KVM switch. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while our On Screen Display technology allows you to assign a unique name to each computer and access it via a slick, menu-driven interface. With it's 1U, 19?rack-mountable casing and status-monitoring LEDs, the MasterView Plus is the perfect switch for your server room or any other multi-computer environment.
Features:
- Cascadable To Three Levels - Control Up to 512 PCs From a Single Console
- No Software Required - PC Selection via Front Panel Switches, Hot Keys, or OSD (On Screen Display)
- Quick View Scan Feature for Monitoring Selected PCs
- PS/2 and Serial Mouse Emulation Provided For System Bootup
- Console's PS/2 Mouse Controls All Connected PCs - Even Those With Serial Mice
- Microsoft Intellimouse Pro, Logitech FirstMouse, MouseMan, IBM Scrollpoint Mouse
- Support SVGA, VGA and Multisync Monitor Support Superior Video Quality; 1920x1440; DDC2B LED Display For Easy Status Monitoring
- Rack Mountable in 19" System Rack
- Hot Pluggable - Add or Remove PCs for Maintenance Without Powering Down the Switch
System Requirement
- 1 VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any PC in the installation
- 1 PS/2 Style Mouse
- 1 PS/2 Style Keyboard
- 1 VGA, SVGA or Multisync card
- 1 6-pin mini-DIN (PS/2 Style), or DB-9 (standard serial), mouse port
- 1 6-pin mini-DIN (PS/2 Style) keyboard port with +5V DC on pin 4 and Ground on pin 3, or 1 5-pin mini-DIN (AT Style) keyboard port with + 5 DC on pin 5 and Ground on pin 4
