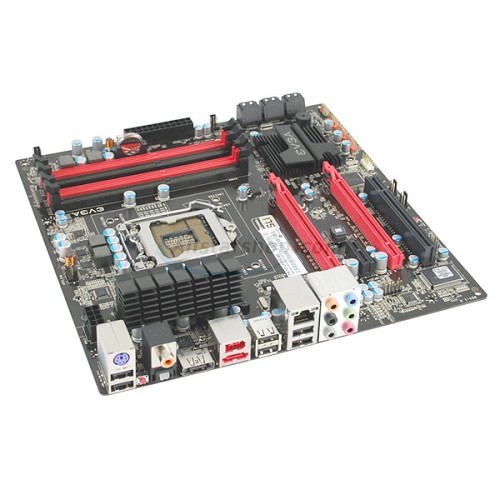

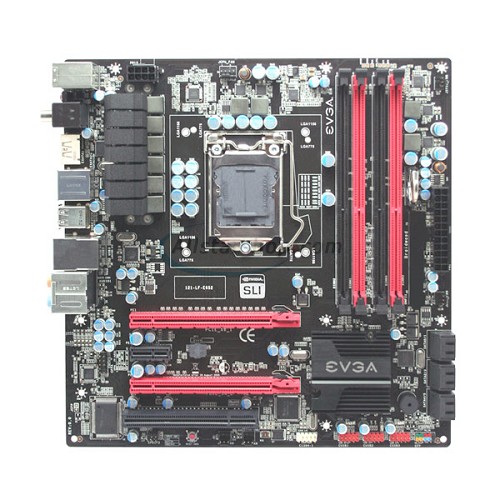

eVGA 121-LF-E652-KR P55 Micro iP55 LGA1156 DDR3 Micro-ATX Motherboard

eVGA P55 Micro iP55 LGA1156 DDR3 Micro-ATX Motherboard - (Discontinued)

Support: (888) 881-3842

eVGA P55 Micro iP55 LGA1156 DDR3 Micro-ATX Motherboard - (Discontinued)

SKU:	800-13301A

Max 16GB / 4 x DDR3 2000/1600/1333/1066
6 x SATA / RAID 0, 1, 0+1, 5, JBOD / 0 x IDE / 0 x FDD
Up to 13 x USB 2.0
2 x PCI-E x8, 1 x PCI

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Asus Pro B860M-CT-CSM B860 LGA1851 mATX Motherboard

: Asus Pro H810M-CT-CSM H810 LGA1851 mATX Motherboard

EVGA P55 Micro motherboard features the latest P55 Express chipset supporting Socket 1156 based processors. With support of up to eight threads of computing power, dual-channel DDR3 memory frequencies of 2000MHz and beyond, NVIDIA SLI Ready, EVGA Dual Play Heatsink support and more, the EVGA P55 Micro offers great features at a great price!

An enthusiast layout allows both a dual slot graphics card to be installed for extreme gaming performance, and EVGA E-LEET tuner support gives world class overclocking features.

Description

Specifications

CPU Support

Intel Core i7
Intel Core i5

Number of Processor (s)

Single (Not Included)

Chipset

Intel P55

Video card slot

2 x PCI-Express 2.0 X8

Number of Memory Slots

Type of Memory Supported

240-pin DDR3 2000/1600/1333/1066

Maximum RAM

16GB

Back Panel I/O

1 x PS/2 Keyboard
8 x USB 2.0
1 x RJ45 LAN Port
1 x Optical S/PDIF Out
1 x Audio I/O
1 x Firewire

Number of PCI/PCI-Express Slots

2 x PCI-Express 2.0 X8
1 x PCI-Express X4 (PhysX)

On-Board EIDE/Floppy

N/A

Integrated SATA/SAS

6 x SATA II 300MB/s

Integrated SATA/SAS RAID

Supports RAID 0, 1, 0+1, 5, JBOD

Integrated Video

USB

7 x USB ports on Back Panel I/O
6 x USB ports via Headers

IEEE 1394

Yes

Serial/Parallel Ports

PS/2 Ports

1 x PS/2 Keyboard

Form Factor

Micro-ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: eVGA
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact eVGA at (888) 881-3842 Or visit eVGA customer service online.
Technical Support: eVGA (888) 881-3842 or visit eVGA technical support online.

Package Contents

1 x EVGA P55 Micro Motherboard
1 x EVGA Driver Installation CD w/ EVGA E-LEET

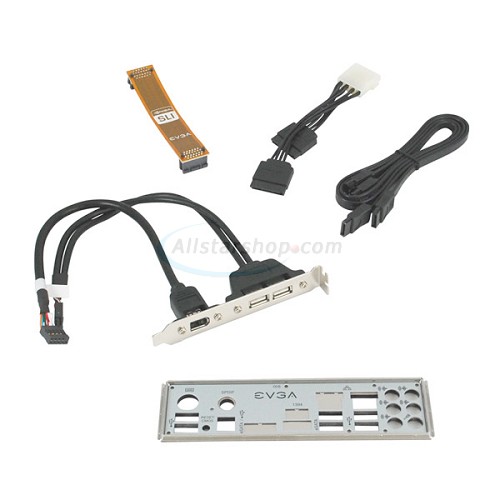

2 x SATA Cables
1 x SATA Power Cable
USB/1394a Combo Bracket
Visual Installation Guide
Manual
