SKU: 800-13302
  • Integrated Intel Graphics - DVI / HDMI / VGA
  • Max 16GB / 4 x Dimm DDR3 1333/1066
  • 5 x SATA, 1 x eSATA / 0 x IDE / 0 x FDD
  • 12 x USB
  • 1 x PCI-E x16, 1 x PCI-E x4, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
    • Intel Core i3
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel H55
    • Video card slot
  • 1 x PCI-Express x16
    • Number of Memory Slots
    4
    Type of Memory Supported
    240-pin DDR3 1333
    Maximum RAM
    16GB
    Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x RJ45 LAN Port
  • 4 x USB 2.0
  • 1 x e-SATA
  • 1 x Audio I/O
    • Number of PCI/PCI-Express Slots
    • 1 x PCI-Express 2.0 x16
    • 1 x PCI-Express x4
    • 1 x 32-bit PCI
    On-Board EIDE/Floppy
    N/A
    Integrated SATA/SAS
    • 5 x SATA 3Gb/s
    • 1 x eSATA
    Integrated Audio
    8 Channel High Definition
    Integrated Video
    Yes
    Integrated LAN
    Yes
    USB
    Up to 12
    IEEE 1394
    No
    PS/2 Ports
  • 1 x Keyboard
  • 1 x Mouse
    • Form Factor
    mATX
    Dimensions
    9.6" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

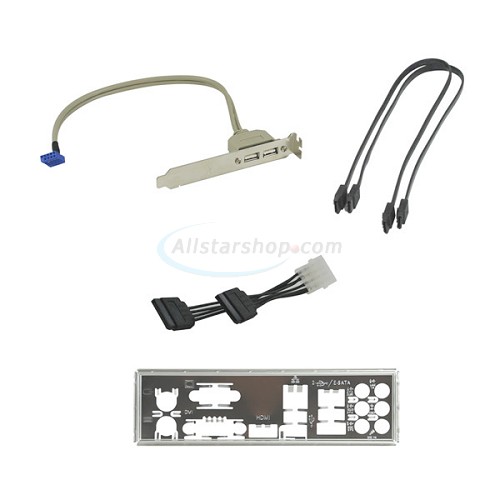

    Package Contents

    • eVGA H55V Desktop Motherboard
    • eVGA Driver Installation CD
    • Rear Case I/O Panel
    • 2 x SATA Cables
    • 1 x SATA Power Cable
    • Visual Installation Guide
    • Manual
