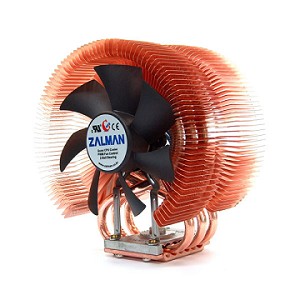

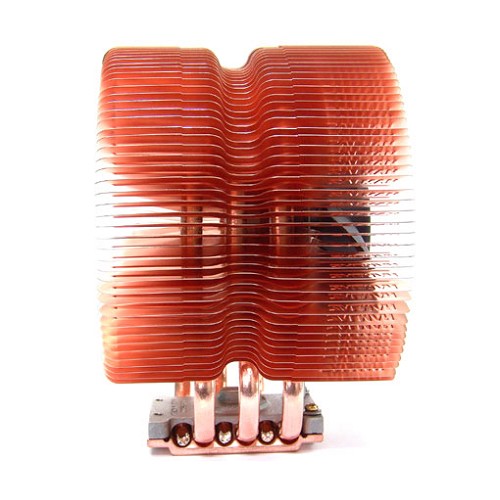

Zalman CNPS9500AT CPU Cooler

Zalman CNPS9500AT CPU Cooler - (Discontinued)

SKU:	960-23516A

Supports Intel LGA 1156/1155/1151/1150/775
Heatsink Dimensions: 85(L) X 112(W) X 125(H) mm
Fan Speed: 1,300rpm ± 30% ~ 2,650rpm ± 10%
Fan Noise: 18.0dBA ± 10% ~ 27.5dBA ± 10%

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Cooler Master Hyper 212 3DHP Black ARGB LGA1851 CPU Cooler

: Cooler Master Hyper 212 3DHP Black LGA1851 CPU Cooler

Low-noise 92mm PWM Control fan for automatic control of the fan RPM according to CPU temperature

Optimized heatsink layout composed of pure copper for maximum heatsink efficiency

Innovative, patented, and curved heatpipe design for a heat transfer capacity of up to six heatpipes with just three

0.2mm ultra-slim fins for minimized weight and reduced airflow resistance

Maintains minimum RPM even when Duty signal supplied by M/B is below 30%

Operates in silence by preventing extreme RPM during initial booting

Description

Low-noise 92mm PWM Control fan for automatic control of the fan RPM according to CPU temperature

Optimized heatsink layout composed of pure copper for maximum heatsink efficiency

Innovative, patented, and curved heatpipe design for a heat transfer capacity of up to six heatpipes with just three

0.2mm ultra-slim fins for minimized weight and reduced airflow resistance

Maintains minimum RPM even when Duty signal supplied by M/B is below 30%

Operates in silence by preventing extreme RPM during initial booting

Specifications

Socket Type

Intel LGA1366/1156/775

Application

Core i7, i5, i3
Core 2 Extreme, Quad, Duo
Pentium D, 4
Celeron D

Fan Speed

2650 rpm

Additional information

Noise Level: 18.0dB ± 10% ~ 27.5dB ± 10%

Main Function: PWM Control Function and Auto Restart Function

Fan Diameter

3.62"

Fan Type

Dual Ball Bearing Fan

Thermal Resistance

0.16

Mounting Type

Clip Mount

Cooler Type

Thermo-Electric

Input Voltage

12 V

Weight

18.7 oz

Material

Copper Heatsink

Dimensions

4.92" Height x 4.41" Width x 3.35" Length

Compatibility

Intel Socket 775:

Celeron D

Pentium 4

Pentium D

Core 2 Duo

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: ZALMAN
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact ZALMAN at (714) 693-8880
Technical Support: ZALMAN (714) 693-8880

Package Contents

CNPS9500AT Processor Heatsink and Cooling Fan
Thermal Grease
Clip (S-Type)
4 x Bolts (for installing cooler)
User Manual
Components for Intel Dual Core Pentium/ Pentium 4 (Socket 775):
4 x Clip Support Fixing Bolts
1 x Clip Support
1 x Back Plate
