SKU: 960-23511A
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Fan Diameter
3.62"
Fan Speed
2600 rpm - ± 10%
Fan Type
Dual Ball Bearing Fan
Cooler Type
Thermo-Electric
Connectors
3-pin TX3
Weight
  • 12.35 oz - Heatsink
  • 0.71 oz - Fan Mate 2
    • Material
    Aluminum/Copper Heatsink
    Dimensions
  • 2.46" Height x 4.25" Width x 4.25" Length - Heatsink
  • 1.02" Height x 1.02" Width x 2.76" Length - FAN MATE 2
    • Additional information

    Noise Level:

  • Silent Mode: 18.0dBA ± 10%
  • Low-noise Mode: 30.0dBA ± 10%

    • Compatibility

    Intel Socket 775:

  • Celeron D Processors
  • Pentium 4 Processors
  • Pentium D Processors
  • Core 2 Duo Processors

    • AMD Socket AM2:

  • Sempron Processors
  • Athlon 64 Processors
  • Athlon 64 X2 Processors
  • Athlon 64 FX Processors

    • AMD Socket 754:

  • Sempron Processors
  • Athlon 64 Processors

    • AMD Socket 939:

  • Opteron Processors
  • Athlon 64 Processors
  • Athlon 64 X2 Processors
  • Athlon 64 FX Processors
  • Dual-Core Opteron Processors

    • AMD Socket 940:

  • Opteron Processors
  • Athlon 64 FX Processors
  • Dual-Core Opteron Processors

    • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: ZALMAN
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact ZALMAN at (714) 693-8880
    • Technical Support: ZALMAN (714) 693-8880

    Package Contents

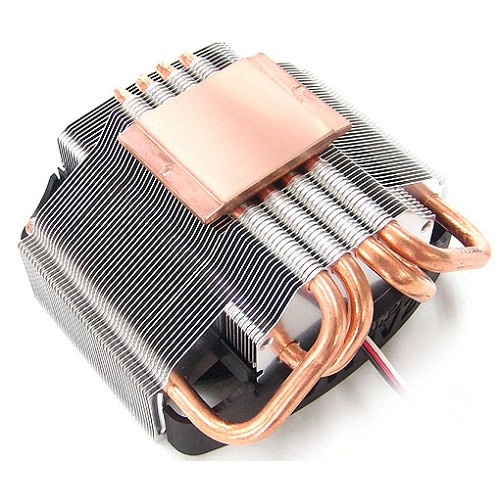

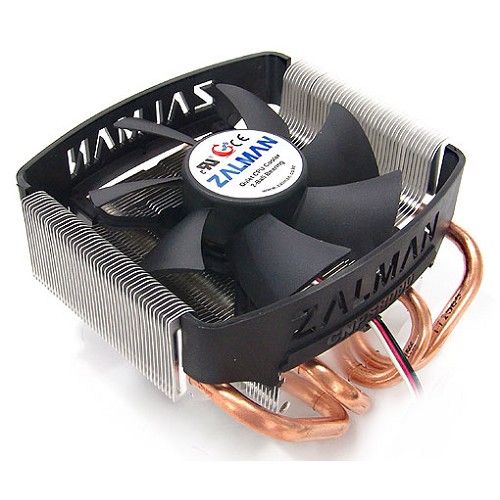

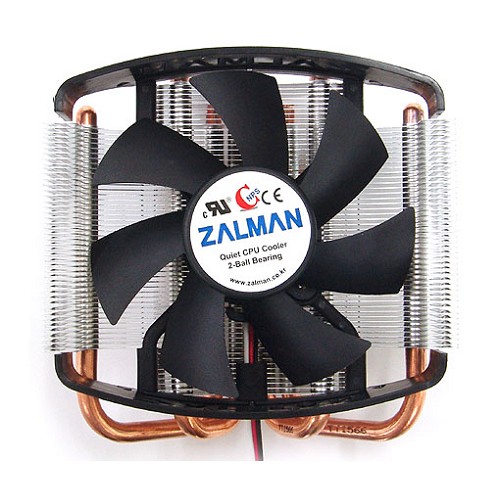

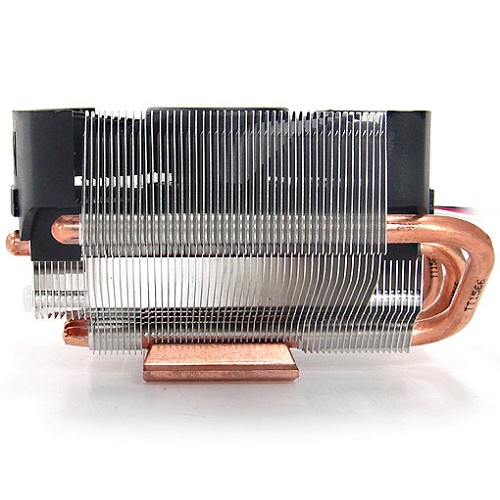

    • CNPS8000 Processor Heatsink and Cooling Fan
    • 1 x Thermal Grease
    • 1 x FAN MATE 2 (Fan Speed Controller)
    • 1 x Cable for FAN MATE 2
    • 1 x Double-sided Tape (for attaching FAN MATE 2)
    • 1 x User Manual

      • Components for Intel Pentium D/Pentium 4 (Socket 775):

    • 2 x Clips
    • 1 x Backplate

      • Components for AMD AMD64 (Socket 754/939/940):

    • 1 x Clip-A
    • 1 x Clip-B
