SKU: 960-23511B
  • Supports Intel LGA 1366, 1156, 775 / AMD AM3, AM2+, AM2
  • Copper base contact w/ Aluminum fins
  • 3-pin 92mm cooling fan
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Socket Type
  • Intel LGA1366/1156/775
  • AMD Socket AM3/AM2+/AM2
Application
  • Intel Core i7 Extreme, i7, i5, i3
  • Core 2 Extreme, Quad, Duo
  • AMD Phenom II, Phenom, Athlon X2, Athlon II< Athlon FX, Athlon, Sempron
Heat Sink Type
  • Fins: Aluminum
  • Base: Copper
    • Heatsink Dimension
    108(L) X 108(W) X 66(H)mm
    Fan Speed
  • 1,400 ~ 2,600rpm ± 10 %(FAN MATE 2 connected)
  • 2,800 ± 10 %(FAN MATE 2 not connected)
    • Fan Noise
  • 20 ~ 30dBA ± 10 %(FAN MATE 2 connected)
  • 32dBA ± 10 %(FAN MATE 2 not connected)
    • Fan Bearing Type
    Dual Ball Bearing Fan
    Additional information

    Noise Level:

  • Silent Mode: 18.0dBA ± 10%
  • Low-noise Mode: 30.0dBA ± 10%

    • Connectors
    3-pin TX3

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: ZALMAN
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact ZALMAN at (714) 693-8880
    • Technical Support: ZALMAN (714) 693-8880

    Package Contents

    • Cooler

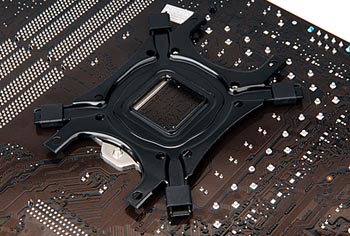

    • Backplate
    • Side Caps
    • Nuts
    • Loading Block
    • Double-sided tape
    • Thermal Grease
    • FanMate2
    • FanMate2 Cable
    • User's Manual

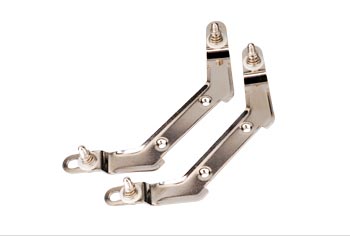

    • Clips for Intel & AMD
