SKU: 960-23501E
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Socket Type
  • Intel LGA 1156/775
  • AMD Socket 940/939/754
Fan Speed
2000 rpm - ± 10%
Additional information
Noise Level: 22.7 ~ 37.1dBA ± 10%
Fan Diameter
4.72"
Fan Type
Dual Ball Bearing Fan
Cooler Type
Thermo-Electric
Connectors
3-pin TX3
Weight
  • 21.16 oz - CNPS7700-AlCu LED
  • 0.71 oz - Fan Mate 2
    • Material
    Aluminum/Copper Heatsink
    Dimensions
  • 2.64" Height x 5.35" Width x 5.35" Length - CNPS7700-AlCu LED
  • 1.02" Height x 1.02" Width x 2.76" Length - FAN MATE 2
    • Compatibility

    Intel Socket 478:

  • Celeron Processors
  • Celeron D Processors
  • Pentium 4 Processors

    Intel Socket 775:

  • Celeron D Processors
  • Pentium 4 Processors
  • Pentium D Processors
  • Core 2 Duo Processors

    AMD Socket 754:

  • Sempron Processors
  • Athlon 64 Processors

    AMD Socket 939:

  • Opteron Processors
  • Athlon 64 Processors
  • Athlon 64 X2 Processors
  • Athlon 64 FX Processors
  • Dual-Core Opteron Processors

    AMD Socket 940:

  • Opteron Processors
  • Athlon 64 FX Processors
  • Dual-Core Opteron Processors

    • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: ZALMAN
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact ZALMAN at (714) 693-8880
    • Technical Support: ZALMAN (714) 693-8880

    Package Contents

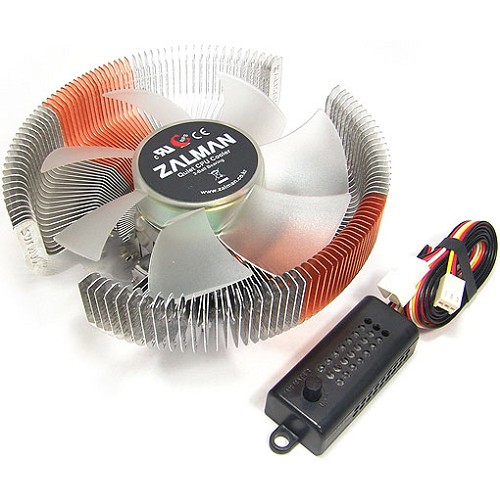

    • CNPS7700-AlCu LED Processor Heatsink and Cooling Fan
    • 4 x Bolts
    • Thermal Grease
    • 4 x Grips (2 each for S-Type and L-Type)
    • Fan Speed Controller (FAN MATE 2)
    • Cable for FAN MATE 2
    • Double-sided Tape (for installing FAN MATE 2)
    • User Manual - in English and Korean

      • Components for Intel Pentium 4 (Socket 775):

    • 1 x Backplate
    • 1 x Clip Support
    • 4 x Clip Support Fixing Bolts

      • Components for Intel Pentium 4 (Socket 478):

    • 2 x Clip Supports

      • Components for AMD Sempron/AMD64 (Socket 754/939/940):

    • 2 x Nipples
    • 1 x Backplate
    • 1 x set of Washers
