SKU: 960-23502D
  • Pure Copper base material ensures excellent heat dissipation.
  • Adjustable fan speed controller enables control of noise and fan performance.
  • 92mm fan inside the FHS maximizes airflow
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Socket Type
  • Intel LGA 775/478
  • AMD Socket 940/939/754/478
Application
  • Intel Core 2 Duo Extreme, Quad, Duo
  • Pentium 4 - all speed
  • AMD Athlon XP - all speed
  • AMD Athlon 64 - all speed
  • AMD Athlon 64 FX - all speed
  • AMD Opteron - all speed
Heat Sink Type
100% Copper
Fan Dimension
92 mm
Fan Speed
1350~2600 RPM
Fan Noise
18~27.5 dBA
Fan Bearing Type
Double Ball Bearing
Temp. Sensor
No
Variable Speed Fan
Yes
Connector (s)
3-pin
Additional information
To use this product on socket 775, ZM-CS1 must be purchased separately

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: ZALMAN
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact ZALMAN at (714) 693-8880
  • Technical Support: ZALMAN (714) 693-8880

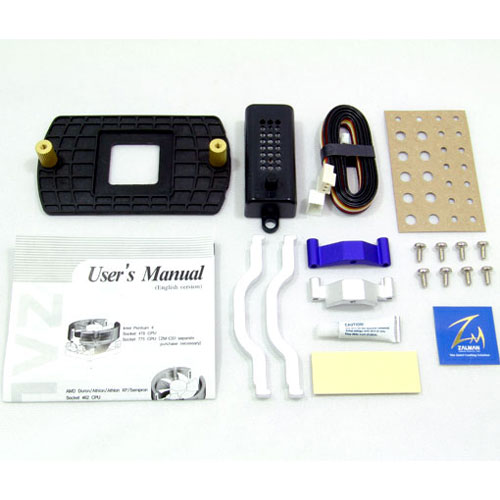

Package Contents

  • Heatsink Assembly (CNPS7000B-Cu LED)
  • 4 x Bolts
  • Thermal Grease
  • Fan Speed Controller (FAN MATE 2)

  • Double-sided Tape (for installing FAN MATE 2)
  • Cable for FAN MATE 2
  • User's Manual

  • For Intel Pentium 4 (Socket 478):
    • 2 x Clip Supports for Socket 478
  • For AMD Duron/Athlon/Athlon XP/Sempron (Socket 462):
    • 1 x A-Type (Blue) Clip Support for Socket 462
    • 1 x B-Type (White) Clip Support for Socket 462
    • 4 x Bolts - For fastening the Clip Supports
    • Set of Washers
  • For AMD Sempron/AMD64 (Socket 754/939/940):
    • 2 x Nipples
    • 1 x Backplate
