Thermaltake Toughpower XT W0227RU 80-Plus 650W PSU - (Discontinued)

Support: (800)988-1088

Thermaltake Toughpower XT W0227RU 80-Plus 650W PSU - (Discontinued)

SKU:	992-63095F

80%+ Efficiency / 80 plus certified
Single +12V rail -
4 x PCI-E connectors
MTBF: 120,000 hours
ATX 12V 2.3 / EPS12V / Cable Management

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Intel Core Ultra 7 270K Plus 24-Core LGA1851 w/36MB cache CPU (BOX)

FanDelayCool:

evolved from high-end projectorfs cooling system, FanDelayCool enables users to control how long the 14cm fan should continue to operate (up to 30 seconds) after system shutdown

S.P.T. Indicator:

indicates the standby, PG signal, and temperature status of the power supply

12Vin1:

single +12V rail provides the best compatibility for the latest components

High Quality Japanese Capacitors provide superb performance and reliability
S.F.C. Quiet:

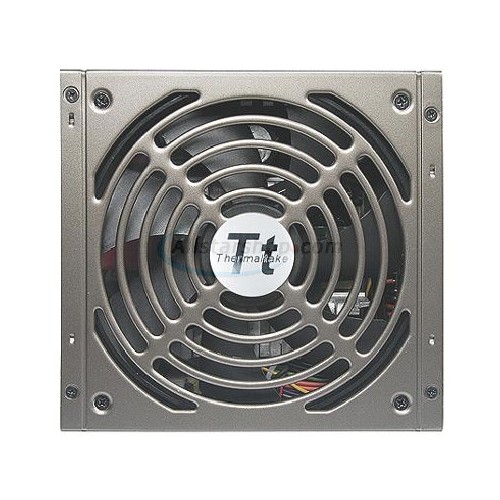

Toughpower XTfs 14cm dual-ball bearing cooling fan is equipped with S.F.C. Quiet technology so that the fan always operates at optimal speed for quiet operation.

Gold-plated connectors for superior conductivity.

Meet 80PLUS Bronze Efficiency Requirement: Eco-Friendly design for the highest efficiency, least heat, and also lower energy bills.

5-Year Warranty: Thermaltake quality 5-year warranty for parts and labor.

14cm ball bearing cooling fan with Japanese made 8mm bearing system.

Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.

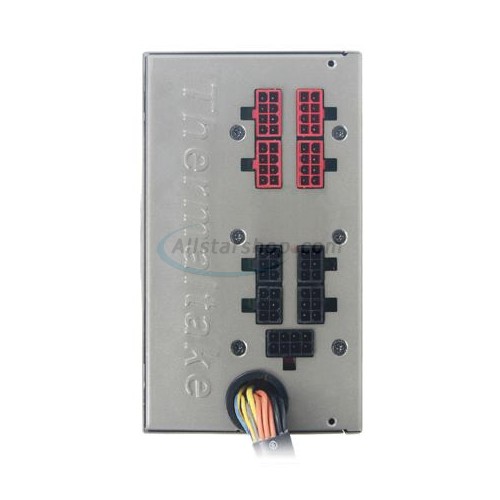

Support dual 8-pin PCI-E & dual 6-pin PCI-E connectors for next generation graphic cards.

Guaranteed to deliver stable continuous output at 50Ž environment.

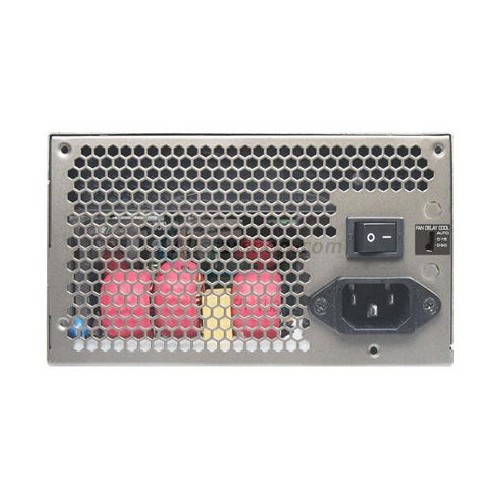

Universal AC input 100V~240V and Active PFC (PF value up to 99%).

DIMENSION: 5.9h(W) x 3.4h(H) x 6.3h (L);150mm(W) x 86mm(H) x 160mm(L)

Protections: Over Power, Over Voltage, and Short-Circuit protection.

Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.

	S.P.T indicator enables the user to check the power supply status themselves by viewing the standby, PG signal and temperature LED. Under abnormal situations, the S.P.Tindicator will display red colors to warn the user and protect your system. The result is a more reliable and longer lasting power supply that exhibits less degradation over time for optimal performance.
	FanDelayCool enables user to manually set the duration of time (range from 0 to 35 seconds) the 140mm fan will stay running after the PC has been shutdown. The implementation of this feature is to allow components inside the power supply to gradually cool off, rather than relying on natural convection which takes much longer and is less effective.
	12Vin1 Powerful single +12V rail provides best performance for PCs with high-performance components .

Description

FanDelayCool:

evolved from high-end projectorfs cooling system, FanDelayCool enables users to control how long the 14cm fan should continue to operate (up to 30 seconds) after system shutdown

S.P.T. Indicator:

indicates the standby, PG signal, and temperature status of the power supply

12Vin1:

single +12V rail provides the best compatibility for the latest components

Gold-plated connectors for superior conductivity.

Meet 80PLUS Bronze Efficiency Requirement: Eco-Friendly design for the highest efficiency, least heat, and also lower energy bills.

5-Year Warranty: Thermaltake quality 5-year warranty for parts and labor.

14cm ball bearing cooling fan with Japanese made 8mm bearing system.

Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.

Support dual 8-pin PCI-E & dual 6-pin PCI-E connectors for next generation graphic cards.

Guaranteed to deliver stable continuous output at 50Ž environment.

Universal AC input 100V~240V and Active PFC (PF value up to 99%).

DIMENSION: 5.9h(W) x 3.4h(H) x 6.3h (L);150mm(W) x 86mm(H) x 160mm(L)

Protections: Over Power, Over Voltage, and Short-Circuit protection.

Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.

	S.P.T indicator enables the user to check the power supply status themselves by viewing the standby, PG signal and temperature LED. Under abnormal situations, the S.P.Tindicator will display red colors to warn the user and protect your system. The result is a more reliable and longer lasting power supply that exhibits less degradation over time for optimal performance.
	FanDelayCool enables user to manually set the duration of time (range from 0 to 35 seconds) the 140mm fan will stay running after the PC has been shutdown. The implementation of this feature is to allow components inside the power supply to gradually cool off, rather than relying on natural convection which takes much longer and is less effective.
	12Vin1 Powerful single +12V rail provides best performance for PCs with high-performance components .

Specifications

Efficiency

Up to 88%

Fans

140 mm Fan 1900RPM ± 10%

MTBF

120,000 hours

Frequency

47 ~ 63 Hz

Output Voltage

Output Voltage	Min. Load	Max. Load
+3.3V	0.5A	30A
+5V	2.0A	28A
+12V1	1A	52A
-12V	0A	0.8A
+5Vsb	0A	3A

Connectors

20+4-pin Main Connector 8-pin Power Connector 4-pin Power Connector

Certifications & Standards

80 plus Bronze Certified

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
