Thermaltake Toughpower W0155RU 1000W ATX12V PSU (nVidia SLI certified) - (Discontinued)

Support: (800)988-1088

Thermaltake Toughpower W0155RU 1000W ATX12V PSU (nVidia SLI certified) - (Discontinued)

SKU:

992-63039

87%+ efficiency / 80 plus Certified / nVidia SLI Certified
4 x +12V rails - Combined 82A
3 x 8-pin PCI-e and 3 x 6-pin PCI-connectors
MTBF: 120,000 hours
ATX12V 2.2 / EPS12V 2.91

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

Thermaltake, the market’s most trusted brand name also produces the market’s most reliable Toughpower series power supply. Built with the latest technological advances in circuitry design with industrial-grade components, Toughpower offers industry’s leading 87%+ efficiency, power protection and performance that today’s cutting-edge PC components demand.

Features

Stable 1000W continuous output, peak power at 1100W (at 50Ž operating environment)

Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior performance for PC system. (combined loading of 82A)

NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card.

Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core GPU technologies.

Independent Voltage Circuit: offers unflappable current delivery under heavy load.

Strict voltage regulation (+/-3%): provides steady voltage for system.

Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).

Industrial grade components (capacitor, transformer, etc)

High reliability: MTBF>120,000 hours.

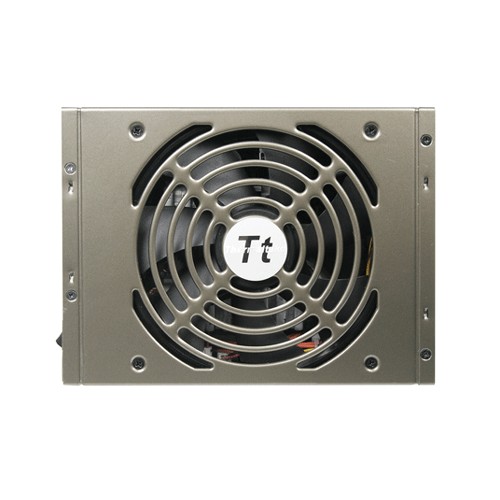

Quiet and reliable 14cm ball-bearing fan.

Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, Over Power, and Short-Circuit protection.

Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

	Quad +12V Rails and EPS Structure		Hi-Tech Black Coating
	8 S-ATA Connectors		Silent 140mm Fan
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%		Cable Application

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 8	6-pin PCI-Express x 3	8-pin EPS12V x 1
8-pin PCI-Express x 3	4pin+4 EPS12V x 1	8-pin-to-6-pin PCI-Express x 3

Description

Stable 1000W continuous output, peak power at 1100W (at 50Ž operating environment)

Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior performance for PC system. (combined loading of 82A)

NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card.

Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core GPU technologies.

Independent Voltage Circuit: offers unflappable current delivery under heavy load.

Strict voltage regulation (+/-3%): provides steady voltage for system.

Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).

Industrial grade components (capacitor, transformer, etc)

High reliability: MTBF>120,000 hours.

Quiet and reliable 14cm ball-bearing fan.

Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, Over Power, and Short-Circuit protection.

Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

	Quad +12V Rails and EPS Structure		Hi-Tech Black Coating
	8 S-ATA Connectors		Silent 140mm Fan
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%		Cable Application

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 8	6-pin PCI-Express x 3	8-pin EPS12V x 1
8-pin PCI-Express x 3	4pin+4 EPS12V x 1	8-pin-to-6-pin PCI-Express x 3

Specifications

Number of Fans

Holdup Time

16 ms

Protection Type

Over Current

Over Voltage

Under Voltage

Over Temperature

Over Power

Short Circuit

MTBF

120000Hour

Version Support

ATX12V v2.2 EPS12V v2.91

Input Voltage Range

115V AC to 230V AC

Frequency

47 Hz to 63 Hz

Output Power

1000 W

Output Voltage

Output Voltage	Min. Load	Max. Load	Regulation	Noise
+3.3V	0.5A	30A	+3/-3%	50mV
+5V	0.5A	30A	+3/-3%	50mV
+12V1	1A	20A	+3/-3%	120mV
+12V2	1A	36A	+3/-3%	120mV
+12V3	1A	36A	+3/-3%	120mV
+12V4	1A	36A	+3/-3%	120mV
-12V	0A	0.8A	+10/-10%	120mV
+5Vsb	0A	3A	+3/5%	50mV
+12V Combined	82A

Receptacles

8 x 5-pin Serial ATA

8 x 4-pin LP4 Peripheral Device

3 x 8-pin PCI-E

3 x 6-pin PCI-E

2 x 4-pin SP4 Floppy Drive

1 x 24-pin ATX Motherboard

2 x 4-pin ATX12V Motherboard

1 x 8-pin EPS12V Motherboard

Input Voltage

230V AC

Additional information

Active PFC (PF > 0.9)

Noise: 16 dBA at 1300 RPM

P. G. Signal: 100-500 ms

Available in Black Color

Compatibility

Intel Quad Core

AMD Quad Core

Dimensions

3.39" Height x 6.3" Width x 7.87" Depth

Certifications & Standards

NVIDIA QUAD-SLI

Safety / EMI Approvals:

TUV

FCC

CUL

BSMI

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
