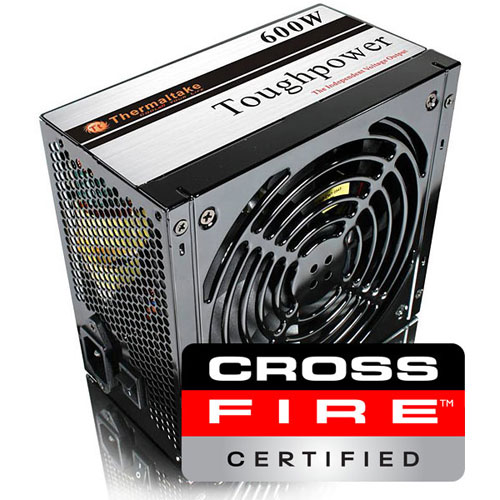

Thermaltake Toughpower W0103RU 600W ATX12V PSU - (Discontinued)

Support: (800)988-1088

Thermaltake Toughpower W0103RU 600W ATX12V PSU - (Discontinued)

SKU:

992-63033

85% efficiency / ATI CrossFire Certified
4 x +12V rails - Combined 48A
1 x 8-pin PCI-E and 1 x 6-pin PCI-E
MTBF: 120,000 hours
ATX12V 2.2 / EPS12V 2.91

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

Thermaltake, the market’s most trusted brand name also produces the market’s most reliable Toughpower series power supply. Built with the latest technological advances in circuitry design with industrial-grade components, Toughpower offers industry’s leading 87%+ efficiency, power protection and performance that today’s cutting-edge PC components demand.

Features:

Complies with ATX 12V 2.2 & EPS 12V 2.91 version
SLI, Cross-Fire, and Dual Core CPU ready
Next generation four +12V rails(12V1, 12V2, 12V3, 12V4) supports high-end graphic card and PC system (combined loading of 48A)
Independent Voltage Circuit: offers unflappable current delivery under heavy load and makes voltage output more stable
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)
Extremely good voltage regulation (±3%): provides steady voltage for system
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours
Mirror effect housing and reliable 14cm ball-bearing fan
Protections: Over Current, Over Voltage, and Short-Circuit protection
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified
Dimensions: 16cm(L)x15cm(W)x8.5cm(H)


Silent 140mm Fan	Noise Preventive Silicon Pad -Effectively reduces vibration noise by as much as 80%

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 7	4-pin Floppy x 2	SATA x 6	4-pin 12V x 1	6-pin PCI-Express x 1
8-pin 12Vx 1	8-pin PCI-Express x 1	8-pin-to-6-pin PCI-Express x 1

Description

Complies with ATX 12V 2.2 & EPS 12V 2.91 version
SLI, Cross-Fire, and Dual Core CPU ready
Next generation four +12V rails(12V1, 12V2, 12V3, 12V4) supports high-end graphic card and PC system (combined loading of 48A)
Independent Voltage Circuit: offers unflappable current delivery under heavy load and makes voltage output more stable
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)
Extremely good voltage regulation (±3%): provides steady voltage for system
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours
Mirror effect housing and reliable 14cm ball-bearing fan
Protections: Over Current, Over Voltage, and Short-Circuit protection
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified
Dimensions: 16cm(L)x15cm(W)x8.5cm(H)


Silent 140mm Fan	Noise Preventive Silicon Pad -Effectively reduces vibration noise by as much as 80%

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 7	4-pin Floppy x 2	SATA x 6	4-pin 12V x 1	6-pin PCI-Express x 1
8-pin 12Vx 1	8-pin PCI-Express x 1	8-pin-to-6-pin PCI-Express x 1

Specifications

Efficiency

85%

Holdup Time

16 ms

Fans

1 x 14cm ball-bearing fan

MTBF

120000Hour

Protection

Over Current

Over Voltage

Short Circuit

Version Support

ATX 12V

Input Voltage Range

100V AC to 240V AC

Frequency

47 Hz to 63 Hz

Output Power

600 W

Input Current

8A @110 V AC/4A @220 V AC

Output Voltage

Output Voltage	Min. Load	Max. Load	Regulation	Noise
+3.3V	0.5A	30A	+3/-3%	50mV
+5V	2.0A	28A	+3/-3%	50mV
+12V1	1A	18A	+3/-3%	120mV
+12V2	1A	18A	+3/-3%	120mV
+12V3	1A	18A	+3/-3%	120mV
+12V4	1A	18A	+3/-3%	120mV
-12V	0A	0.8A	+9/-5%	120mV
+5Vsb	0A	3A	+5/-3%	50mV
+12V Combined	48A

Input Voltage

240V AC

Receptacles

1 x 8-pin EPS12V

1 x 4-pin ATX12V

1 x 24-pin ATX Motherboard

2 x 4-pin SP4 Floppy Drive

7 x 4-pin LP4 Peripheral Device

6 x 5-pin SATA

1 x 6-pin PCI-E

1 x 8-pin PCI-E

1 x 8-pin to 6-pin PCIe connector

Dimensions

3.35" Height x 5.91" Width x 6.3" Depth

Compatibility

Compliant:

EPS12V

ATX12V version 2.2

CPU:

AMD Dual Core Supported

Intel Dual Core Supported

Certifications & Standards

CE, CB, TUV, FCC, UL, CUL, BSMI, ATI CrossFire

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
