SKU: 992-63004A
  • 65%+ efficiency
  • 1 x +12V rail - Combined 18A
  • 1 x 6-pin PCI-e connector
  • ATX12V
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
Over 65%
Fans
Dual 80mm Low Noise Fan
Holdup Time
16 ms
Current
  • 9A @ 115V AC - Input Current
  • 5A @ 230V AC - Input Current
  • Over Voltage Protection
  • 7V DC vs. 5V DC
  • 4.5V DC vs. 3.3V DC
  • 15.6V AC vs. 12V DC
  • Frequency
    47 Hz to 63 Hz
    Output Power
    430 W Maximum
    Output Voltage
    Output VoltageMin. LoadMax. LoadRegulationNoise
    +3.3V0.5A28A+5,-5%100mV
    +5V2.0A30A+5,-5%100mV
    +12V11A18A+5,-5%120mV
    -12V0A0.8A+10,-10%120mV
    +5Vsb0A2A+5,-5%100mV
    Additional information
  • Noise: 19dB at 2000RPM
  • P.G. Signal: 100-500ms
  • Switch:

  • ATX Logic on-off additional power rocker switch
  • Input Voltage
    115V AC to 230V AC
    Compatibility
  • Intel
  • AMD
  • Connectors
  • 20+4-pin ATX Motherboard
  • 4-pin ATX12V
  • 2 x SATA
  • 1 x 6-pin PCI-E
  • 9 x 4-pin Peripheral
  • 2 x 4-pin Floppy Drive
  • Certifications & Standards

    Safety:

  • FCC
  • UL
  • cUL
  • CSA
  • CE
  • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

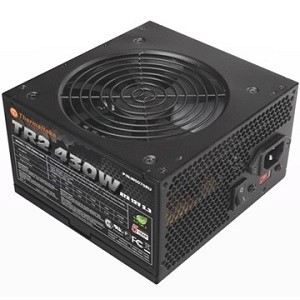

    • TR2 W0070RUC 430W ATX12V PSU
    • Power Cord
