SKU: 992-63038
  • 87% + efficiency / 80 plus Certified / nVidia SLI Certified
  • 4 x +12V rails - Combined 62A
  • 2 x 8-pin PCI-e and 2 x 6-pin PCI-e connectors
  • MTBF: 120,000 hours
  • ATX12V 2.2 / EPS12V 2.91
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
87%
Fans
140 mm @ 2300 RPM
MTBF
120,000 hours
Protection
Over Voltage
Version Support
2.2
Frequency
47~63Hz
Output Power
850W
Output Voltage
Output VoltageMin. LoadMax. LoadRegulationNoise
+3.3V0.5A30A+3,-3%50mV
+5V0.5A30A+3,-3%50mV
+12V11A18A+3,-3%240mV
+12V21A18A+3,-3%240mV
+12V31A30A+3,-3%240mV
+12V41A30A+3,-3%240mV
-12V0A0.8A+9,-5%120mV
+5Vsb0A3A+3,-3%50mV
+12V Combined62A
Input Voltage
100V AC to 240V AC

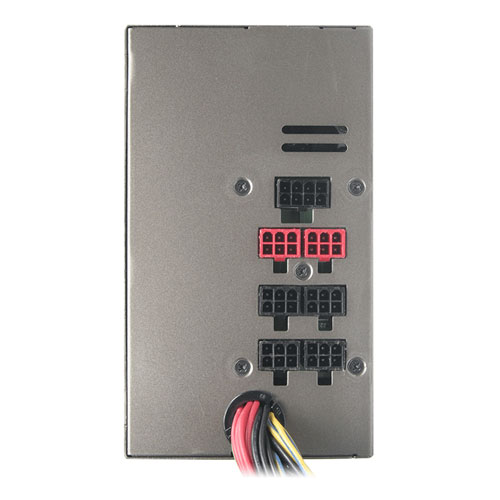

Connectors
  • 2 x 4-pin SP4 Floppy Drive
  • 8 x 4-pin LP4 Peripheral Device
  • 8 x 5-pin Serial ATA
  • 4 x 6-pin PCI-E
  • 1 x 8-pin EPS12V
  • 1 x 24-pin ATX Motherboard
  • 2 x 6-pin-to-8-pin PCI-E
  • Dimensions
    3.35" Height x 5.91" Width x 6.3" Depth
    Certifications & Standards

    CE, CB, TUV, FCC, UL, CUL, BSMI, nVIDIA SLi

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

    • Throughpower 850W ATX12V Power Supply
    • 1 x USB Cable
    • 1 x Status LED Cable
