Thermaltake TR2 RX TRX-650M ATX12V 650W PSU (Modular) - (Discontinued)

Support: (800)988-1088

Thermaltake TR2 RX TRX-650M ATX12V 650W PSU (Modular) - (Discontinued)

SKU:	992-63007C

Efficiency 80%
1 x +12V Rail
2 x PCI-E 8-Pin(6+2) / 2 x PCI-E 6-Pin
MTBF: 100,000 hours
Modular Cables

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Samsung 9100 Pro 8TB PCIe 5.0 x4 M.2 SSD

: Micron 48GB DDR5-6400 ECC Reg CL52 1Rx4 288-pin RDIMM

: Micron 96GB DDR5-6400 ECC Reg CL52 2Rx4 288-pin RDIMM

The Thermaltake TR2 650W ATX12V & EPS12V Power Supply is designed with mainstream PC in mind. With Thermaltake's state-of-the-art circutry design capability and advanced packaging technology, it is capable of providing the same level of high efficiency and power protection that you have come to expect from.

Features

ATX 12V V2.3 & EPS 12V 2.91 enables most reliable and robust power delivery.

Guarantee to deliver 650W of continuous power output at 40℃

Robust and dedicated single +12V output provides superior performance under all types of system loading.

High efficiency: over 80% at 230VAC input.

Double forward ultra-efficient circuitry design for added power savings.

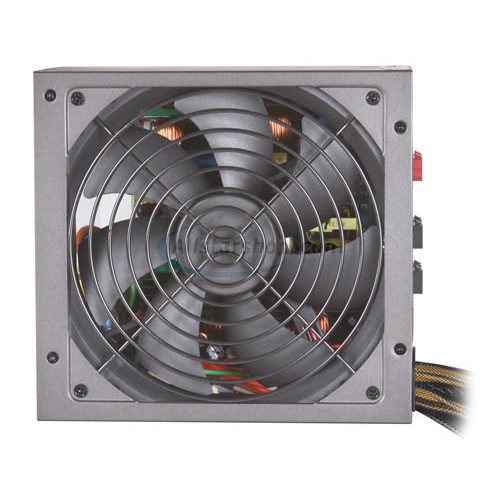

Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.

Universal AC input 100V~240V automatically scans and detects the correct voltage for different countries.

99% Active Power Factor Correction provides clean and reliable power to your system.

Cable Management improves internal airflow by reducing cable clutter within PC to promote accelerated heat removal.

Intel® & AMD CPU compliant.

Nvidia® & ATI/AMD graphic card compatible.

Dimension: 150mm(W)x86mm(H)x160mm(L).

High reliability: MTBF>100,000 hours.

Built in industrial-grade protections: Over Current, Over Voltage and Short-Circuit protections.

Safety / EMI : UL/ CUL, TUV, FCC, CE and BSMI certified.

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 4	4-pin Floppy x 1	SATA x 6	6-pin PCI-Express x 1	4pin+4 12V x 1

Description

ATX 12V V2.3 & EPS 12V 2.91 enables most reliable and robust power delivery.

Guarantee to deliver 650W of continuous power output at 40℃

Robust and dedicated single +12V output provides superior performance under all types of system loading.

High efficiency: over 80% at 230VAC input.

Double forward ultra-efficient circuitry design for added power savings.

Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.

Universal AC input 100V~240V automatically scans and detects the correct voltage for different countries.

99% Active Power Factor Correction provides clean and reliable power to your system.

Cable Management improves internal airflow by reducing cable clutter within PC to promote accelerated heat removal.

Intel® & AMD CPU compliant.

Nvidia® & ATI/AMD graphic card compatible.

Dimension: 150mm(W)x86mm(H)x160mm(L).

High reliability: MTBF>100,000 hours.

Built in industrial-grade protections: Over Current, Over Voltage and Short-Circuit protections.

Safety / EMI : UL/ CUL, TUV, FCC, CE and BSMI certified.

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 4	4-pin Floppy x 1	SATA x 6	6-pin PCI-Express x 1	4pin+4 12V x 1

Specifications

Efficiency

Over 80% +

Fans

140mm, 2000 RPM

MTBF

100,000 Hours

Protection

Over Voltage Protection
Over Current Protection
Over Load Protection
Over Temperature Protection
Under Voltage Protection
Short Circuit Protection

Version Support

ATX 12V 2.3 & EPS 12V 2.91

Current

Input Current: 115 VAC / 10A max, 230 VAC / 5A max

Frequency

50 ~ 60 Hz

Output Power

650 W Maximum

Output Voltage

Output Voltage	Output Current
+3.3V	24A
+5V	15A
+12V1	44A
-12V	0.3A
+5Vsb	2.5A

Input Voltage

115V AC to 230V AC

Connectors

20+4-pin ATX Motherboard

4+4-pin ATX12V

6 x SATA

1 x 6-pin PCI-E

6 x 4-pin Peripheral

1 x 4-pin Floppy Drive

Dimensions

6.3 x 5.9 x 3.3 inch (L)x(W)x(H)

Certifications & Standards

Safety:

FCC

CUL

BSMI

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.

Package Contents

TR2 RX TRX-650M 650W ATX12V PSU
Power Cord
