Thermaltake TR2 RX TRX-1000M ATX12V & EPS12V 1000W PSU (Modular) - (Discontinued)

Support: (800)988-1088

Thermaltake TR2 RX TRX-1000M ATX12V & EPS12V 1000W PSU (Modular) - (Discontinued)

SKU:	992-63098A

80% + Efficiency
Dual +12V rails
4 x PCI-E connectors
MTBF ~ 100,000 hours
ATX 12V 2.3 & EPS 12V 2.91

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Intel Core Ultra 5 235 14-Core LGA1851 w/24MB cache CPU (BOX)

: PNY GeForce RTX 5090 32GB Triple Fan PCIe 5.0 Video Card

: MSI B850 Gaming Plus WIFI AMD B850 AM5 ATX Motherboard

Features

ATX 12V V2.3 & EPS 12V 2.91 enables most reliable and robust power delivery.

Guarantee to deliver 1000W of continuous power output at 40℃

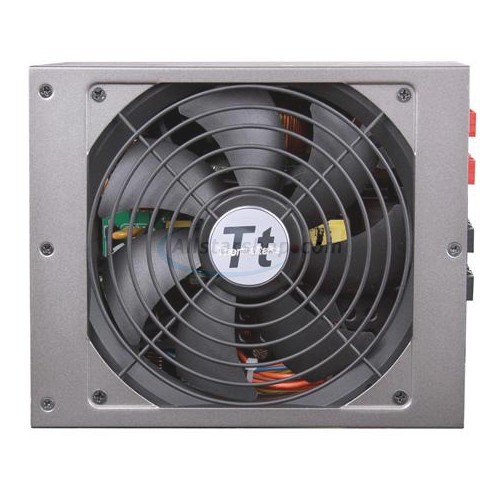

Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.

Universal AC input 115V~240V automatically scans and detects the correct voltage for different country.

99% Active Power Factor Correction provides clean and reliable power to your system.

80 PLUS® Standard Certified: 80% or more efficiency at 20%, 50%, and 100% load.

Robust and dedicated dual +12V output provides superior performance under all types of system loading.

Thermaltake proprietary circuitry design provides continuous 1000W power output when needed.

Double forward ultra-efficient circuitry design for added power savings.

VRM (Voltage Regulator Module) technology has smaller volume, highest efficiency ,most stable performance, and perfect regulation.

High quality 105℃ Japanese capacitors & solid state capacitors provide uncompromised performance and reliability.

Cable Management improves internal airflow by reducing cable clutter within PC to promote accelerated heat removal.

Intel® & AMD CPU compliant.

Nvidia® & ATI/AMD graphic card compatible.

Dimension: 150mm(W)x86mm(H)x180mm(D)

High reliability: MTBF>100,000 hours.

Built-in industry grade protections : Over Power, Over Voltage, and Short-Circuit protection.

Safety / EMI : UL, CUL, TUV, FCC, CE, GOST and BSMI certification.


Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.	High quality 105Ž Japanese capacitors & solid state capacitors provide uncompromised performance and reliability.

	Dedicated & powerful dual +12V rails: 1000W with combined 80A of power, 1200W with combined 90A of power.


	Double forward ultra-efficient circuitry design for added power savings. VRM (Voltage Regulator Module) technology has smaller volume, highest efficiency ,most stable performance, and perfect regulation.

Description

Features

ATX 12V V2.3 & EPS 12V 2.91 enables most reliable and robust power delivery.

Guarantee to deliver 1000W of continuous power output at 40℃

Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.

Universal AC input 115V~240V automatically scans and detects the correct voltage for different country.

99% Active Power Factor Correction provides clean and reliable power to your system.

80 PLUS® Standard Certified: 80% or more efficiency at 20%, 50%, and 100% load.

Robust and dedicated dual +12V output provides superior performance under all types of system loading.

Thermaltake proprietary circuitry design provides continuous 1000W power output when needed.

Double forward ultra-efficient circuitry design for added power savings.

VRM (Voltage Regulator Module) technology has smaller volume, highest efficiency ,most stable performance, and perfect regulation.

High quality 105℃ Japanese capacitors & solid state capacitors provide uncompromised performance and reliability.

Cable Management improves internal airflow by reducing cable clutter within PC to promote accelerated heat removal.

Intel® & AMD CPU compliant.

Nvidia® & ATI/AMD graphic card compatible.

Dimension: 150mm(W)x86mm(H)x180mm(D)

High reliability: MTBF>100,000 hours.

Built-in industry grade protections : Over Power, Over Voltage, and Short-Circuit protection.

Safety / EMI : UL, CUL, TUV, FCC, CE, GOST and BSMI certification.


Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.	High quality 105Ž Japanese capacitors & solid state capacitors provide uncompromised performance and reliability.

	Dedicated & powerful dual +12V rails: 1000W with combined 80A of power, 1200W with combined 90A of power.


	Double forward ultra-efficient circuitry design for added power savings. VRM (Voltage Regulator Module) technology has smaller volume, highest efficiency ,most stable performance, and perfect regulation.

Specifications

Efficiency

80%+ Efficiency

Fans

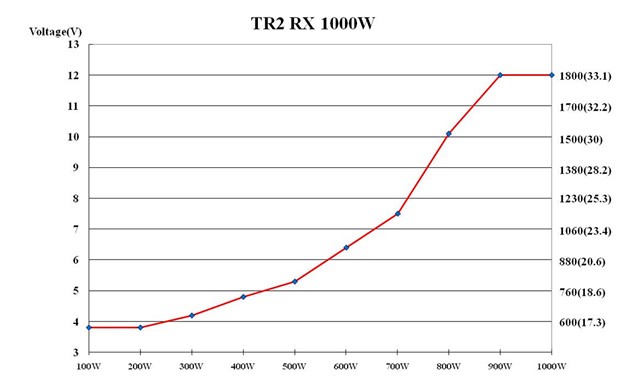

140mm 1800RPM +/- 10%

MTBF

100,000 hours

Protection

Over Voltage Protection Yes

Over Current Protection Yes

Over Load Protection Yes

Over Termperature Protection Yes

Under Voltage Protection Yes

Short Circuit Protection Yes

Version Support

ATX 12V 2.3 & EPS 12V 2.91

Current

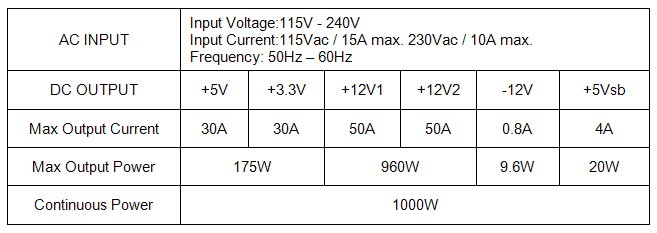

Input Current: 115 VAC / 15A max 230 VAC / 10A max

Frequency

50 ~ 60 Hz

Connectors

24-pin Main Connector

8-pin Power Connector

4-pin Power Connector

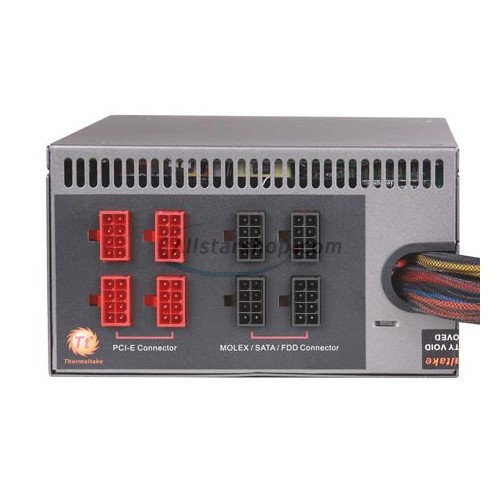

4 x PCI-E Connectors

Dimensions

7.1 x 5.9 x 3.3 inch (L)x(W)x(H) 180 x 150 x 86 mm (L)x(W)x(H)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.

Package Contents

TR2 RX 1000W ATX 12V v2.3 / EPS 12V v2.91 Modular Active PFC PSU
Power Cord
