Thermaltake Toughpower XT TPX-575M 575W ATX12V PSU - (Discontinued)

Support: (800)988-1088

Thermaltake Toughpower XT TPX-575M 575W ATX12V PSU - (Discontinued)

SKU:

992-63099

Up to 88% Efficiency
Single +12V rail - up to 48A
2 x 6+2 pin PCI-E, 2 x 6 pin PCI-E connectors
MTBF ~120,000 hours
ATX 12V 2.3 / SSI EPS 12V 2.91

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: ASRock B860 Pro-A WiFi B860 LGA1851 ATX Motherboard

: ASRock B860 Pro RS B860 LGA1851 ATX Motherboard

: ASRock B860 Pro RS WiFi B860 LGA1851 ATX Motherboard

Features

Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.91 standards.

80 PLUS Bronze certified - provide up to 88% effective power conversion to cut- down electric cost.

24/7 @ 50 °C: Guaranteed to deliver 575W continuous output power.

Double-forward switching circuitry: compared with traditional circuitry, double- forward switching circuitry offers low power loss and high reliability.

Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency.

S.P.T. indicator: PSU status monitor with 3-mode LED (standby / PG signal / temperature).

12Vin1: single +12V rail design providing up to 48A

High quality Japanese capacitors: ensure superb performance and reliability.

Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.

Fan Delay Cool Technology: allow fan to continue to operate after system shuts-down to ensure all components are properly cooled.

Multi-GPU ready: support up to two PCI-E 6+2pin & two PCI-E 6pin for PCI-Express graphic cards.

Auto switching circuitry for universal AC input from 90-264V.

Active Power Factor Correction (PFC) with PF value of 0.95 at full load.

High reliability: MTBF>120,000 hours.

DIMENSION: 5.9"(W) x 3.4"(H) x 6.3" (L); 150mm(W) x 86mm(H) x 160mm(L).

Built in industrial-grade protections: Over Current, Over Power, Over Voltage, Under Voltage, and Short-Circuit protections.

Safety / EMI Approvals: UL/ CUL, TUV, FCC, CE, BSMI and GOST certified.




Industrial-grade capacitors provide uncompromised performance and reliability	S.P.T. indicators enable the user to check the power supply status themselves by viewing the standby, PG signal and temperature LED.

Powerful single +12V rail provide best performance for PCs with high-performance components.	With DC to DC converter of +3.3V & +5V circuit built in, the power supply provides superior dynamic response and great system stability.

Cable management design improves internal airflow and reduce clutter.

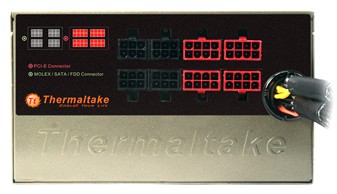

Output Connectors

24-pin Main Power x 1


4-pin Peripheral x 4	4-pin Floppy x 1	SATA x 8	4-pin 12V x 1	6-pin PCI-Express x 2
8-pin PCI-Express x 2	4pin+4 12V x 1

Description

Features

Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.91 standards.

80 PLUS Bronze certified - provide up to 88% effective power conversion to cut- down electric cost.

24/7 @ 50 °C: Guaranteed to deliver 575W continuous output power.

Double-forward switching circuitry: compared with traditional circuitry, double- forward switching circuitry offers low power loss and high reliability.

Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency.

S.P.T. indicator: PSU status monitor with 3-mode LED (standby / PG signal / temperature).

12Vin1: single +12V rail design providing up to 48A

High quality Japanese capacitors: ensure superb performance and reliability.

Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.

Fan Delay Cool Technology: allow fan to continue to operate after system shuts-down to ensure all components are properly cooled.

Multi-GPU ready: support up to two PCI-E 6+2pin & two PCI-E 6pin for PCI-Express graphic cards.

Auto switching circuitry for universal AC input from 90-264V.

Active Power Factor Correction (PFC) with PF value of 0.95 at full load.

High reliability: MTBF>120,000 hours.

DIMENSION: 5.9"(W) x 3.4"(H) x 6.3" (L); 150mm(W) x 86mm(H) x 160mm(L).

Built in industrial-grade protections: Over Current, Over Power, Over Voltage, Under Voltage, and Short-Circuit protections.

Safety / EMI Approvals: UL/ CUL, TUV, FCC, CE, BSMI and GOST certified.




Industrial-grade capacitors provide uncompromised performance and reliability	S.P.T. indicators enable the user to check the power supply status themselves by viewing the standby, PG signal and temperature LED.

Powerful single +12V rail provide best performance for PCs with high-performance components.	With DC to DC converter of +3.3V & +5V circuit built in, the power supply provides superior dynamic response and great system stability.

Cable management design improves internal airflow and reduce clutter.

Output Connectors

24-pin Main Power x 1


4-pin Peripheral x 4	4-pin Floppy x 1	SATA x 8	4-pin 12V x 1	6-pin PCI-Express x 2
8-pin PCI-Express x 2	4pin+4 12V x 1

Specifications

Efficiency

Up to 88%

Fans

140mm 1900RPM +/- 10%

MTBF

~120,000 hours

Protection

Over Voltage Protection Yes

Over Current Protection Yes

Over Load Protection Yes

Over Termperature Protection Yes

Under Voltage Protection Yes

Short Circuit Protection Yes

Version Support

ATX 12V 2.3
EPS 12V 2.91

Current

Input Current 8A / 4A

Frequency

Input Frequency Range - 47 ~ 63 Hz

Output Voltage

Output Voltage	Output Current
+3.3V	25A
+5V	25A
+12V1	48A
-12V	0.5A
+5Vsb	3A
+12V Combined	48A

Input Voltage

100 VAC ~ 240 VAC

Dimensions

6.3 x 5.9 x 3.4 inch (L)x(W)x(H) 160 x 150 x 86 mm (L)x(W)x(H)

Certifications & Standards

80PLUS Bronze Certified ATI CrossFireX Certified

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
